Beskrivning

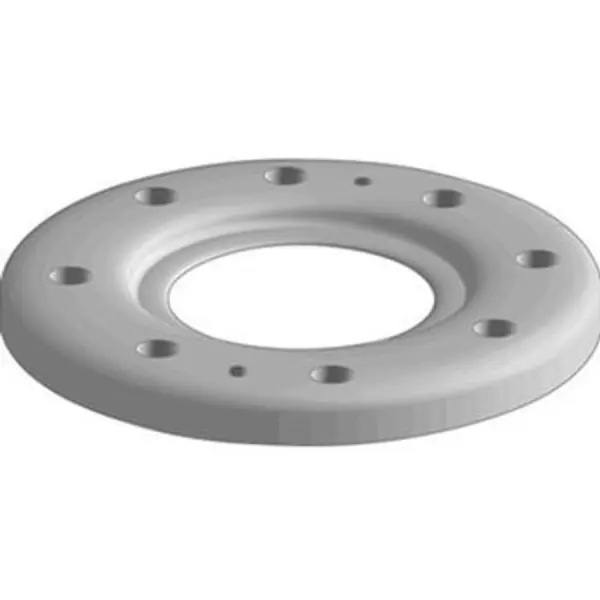

EN 1.4404/316L. Pressad lösfläns. Ej trycknormerad enl. EN-standard.

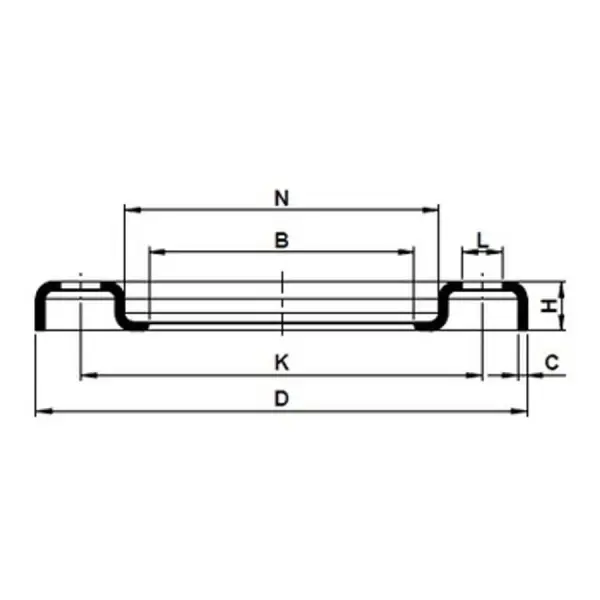

DN
DN65
Dimension
69 mm
D
185 mm
k
145 mm
b
21,5 mm
d2
18 mm
d1
75,5 mm
Bulthål
4 STK
Vikt
0,98 kg
Tryckklass
PN16
LÖSFLÄNS PRESSAD DN65/69 PN16 DIN2642 1.4404 METRISK
Det ursprungliga priset var: 429 kr.309 krDet nuvarande priset är: 309 kr. stk
SPARA -28% LagervaraEN 1.4404/316L. Pressad lösfläns. Ej trycknormerad enl. EN-standard.
Lägsta pris senaste 30 dagarna: 309 kr / stk
| Artikelnr | DN | Dimension | D | k | b | d2 | d1 | Bulthål | Vikt | Tryckklass | Pris |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BK-RK273495 | DN100 | 104 mm | 220 mm | 180 mm | 22 mm | 18 mm | 110 mm | 8 STK | 1.74 kg | PN16 | 379 kr |
| BK-RK273496 | DN125 | 129 mm | 250 mm | 210 mm | 22 mm | 18 mm | 135 mm | 8 STK | 2.19 kg | PN16 | 639 kr |
| BK-RK273497 | DN150 | 154 mm | 285 mm | 240 mm | 26 mm | 22 mm | 160 mm | 8 STK | 3.28 kg | PN16 | 769 kr |
| BK-RK273498 | DN200 | 204 mm | 340 mm | 295 mm | 28 mm | 22 mm | 212 mm | 8 STK | 4.63 kg | PN10 | 1579 kr |
| BK-RK273499 | DN250 | 254 mm | 395 mm | 350 mm | 31 mm | 22 mm | 262 mm | 12 STK | 6.18 kg | PN10 | 2019 kr |
| BK-RK273501 | DN300 | 304 mm | 445 mm | 400 mm | 34 mm | 22 mm | 312 mm | 12 STK | 7.45 kg | PN10 | 2509 kr |
| BK-RK273491 | DN40 | 44.5 mm | 150 mm | 110 mm | 19.5 mm | 18 mm | 48 mm | 4 STK | 0.46 kg | PN16 | 209 kr |
| BK-RK273492 | DN50 | 54 mm | 165 mm | 125 mm | 21.5 mm | 18 mm | 58 mm | 4 STK | 0.81 kg | PN16 | 249 kr |
| BK-RK273493 | DN65 | 69 mm | 185 mm | 145 mm | 21.5 mm | 18 mm | 75.5 mm | 4 STK | 0.98 kg | PN16 | 309 kr |
| BK-RK273494 | DN80 | 84 mm | 200 mm | 160 mm | 21.5 mm | 18 mm | 90 mm | 8 STK | 1.36 kg | PN16 | 339 kr |
