Artnr: BK-RK9103857RSK: 9103857

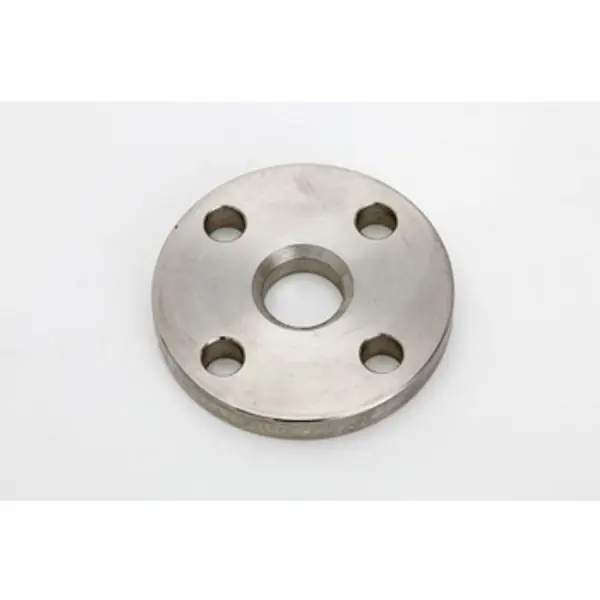

LÖSFLÄNS 40/44,5 ID52 EN1092-1 02A M PN40 1.4404

Name: LÖSFLÄNS 40/44,5 ID52 EN1092-1 02A M PN40 1.4404
SKU: BK-RK9103857
Availability: InStock

Det ursprungliga priset var: 839 kr.Det nuvarande priset är: 609 kr. stk

SPARA -27% Lagervara

EN 1092-1 Typ 02.
DN20-40 = PN40. DN50-150 = PN16.
DN200-600 = PN10.

Lägsta pris senaste 30 dagarna: 609 kr / stk

Artikelnr	DN	Dimension	Tryckklass	D	k	b	d2	d1	e	Bult	Bulthål	Vikt	Pris
BK-RK9103861	100	104.0 mm	PN16	220 mm	180 mm	18 mm	22 mm	113 mm	6 mm	M16	8 STK	3.7 kg	1189 kr
BK-RK9103862	125	129.0 mm	PN16	250 mm	210 mm	18 mm	22 mm	140 mm	6 mm	M16	8 STK	5.7 kg	1409 kr
BK-RK9103853	15	20 mm	PN40	95 mm	65 mm	14 mm	14 mm	22 mm	3 mm	M12	4 STK	0.65 kg	239 kr
BK-RK9103863	150	154.0 mm	PN16	285 mm	240 mm	22 mm	24 mm	165 mm	6 mm	M20	8 STK	5.6 kg	2019 kr
BK-RK9103854	20	25.0 mm	PN40	105 mm	75 mm	14 mm	16 mm	30 mm	4 mm	M12	4 STK	0.9 kg	279 kr
BK-RK9103864	200	204.0 mm	PN10	340 mm	295 mm	22 mm	24 mm	219 mm	6 mm	M20	8 STK	7.5 kg	2479 kr
BK-RK9103855	25	30.0 mm	PN40	115 mm	85 mm	14 mm	18 mm	33 mm	4 mm	M12	4 STK	1.1 kg	339 kr
BK-RK9103865	250	254.0 mm	PN10	395 mm	350 mm	22 mm	26 mm	273 mm	8 mm	M20	12 STK	10.3 kg	3379 kr
BK-RK9103866	300	306.0 mm	PN10	445 mm	400 mm	22 mm	26 mm	324 mm	8 mm	M20	12 STK	14.0 kg	4039 kr
BK-RK9103856	32	38.0 mm	PN40	140 mm	100 mm	18 mm	18 mm	46 mm	5 mm	M16	4 STK	1.8 kg	579 kr
BK-RK278042	350	356 mm	PN10	505 mm	460 mm	30 mm	22 mm	374 mm	8 mm	M20	16 STK	20.8 kg	5269 kr
BK-RK9103857	40	44.5 mm	PN40	150 mm	110 mm	18 mm	18 mm	52 mm	5 mm	M16	4 STK	2.0 kg	609 kr
BK-RK278043	400	406 mm	PN10	565 mm	515 mm	32 mm	26 mm	426 mm	8 mm	M26	16 STK	24.91 kg	6319 kr
BK-RK9103858	50	54.0 mm	PN16	165 mm	125 mm	18 mm	20 mm	64 mm	5 mm	M16	4 STK	2.6 kg	769 kr
BK-RK9120683	500	508 mm	PN10	670 mm	620 mm	38 mm	26 mm	525 mm	8 mm	M24	20 STK	38.5 kg	11169 kr
BK-RK9120684	600	608 mm	PN10	780 mm	725 mm	42 mm	30 mm	628 mm	8 mm	M27	20 STK	52.2 kg	15969 kr
BK-RK9103839	65	70.0 mm	PN16	185 mm	145 mm	18 mm	20 mm	81 mm	6 mm	M16	4 STK	2.6 kg	859 kr
BK-RK9103840	80	84.0 mm	PN16	200 mm	160 mm	18 mm	22 mm	94 mm	6 mm	M16	8 STK	3.3 kg	929 kr
