Artnr: BK-RK9103843RSK: 9103843

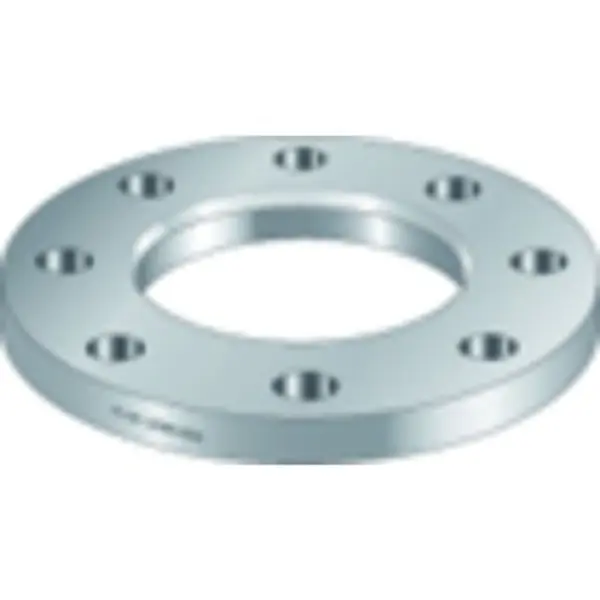

LÖSFLÄNS 150/168,3 EN1092-1 02A PN16 1.4404

Name: LÖSFLÄNS 150/168,3 EN1092-1 02A PN16 1.4404
SKU: BK-RK9103843
Availability: InStock

Det ursprungliga priset var: 2339 kr.Det nuvarande priset är: 1829 kr. stk

SPARA -22% Lagervara

EN 1092-1 Typ 02.
DN20-40 = PN40.
DN50-150 = PN16.
DN200-300 = PN10

Lägsta pris senaste 30 dagarna: 1829 kr / stk

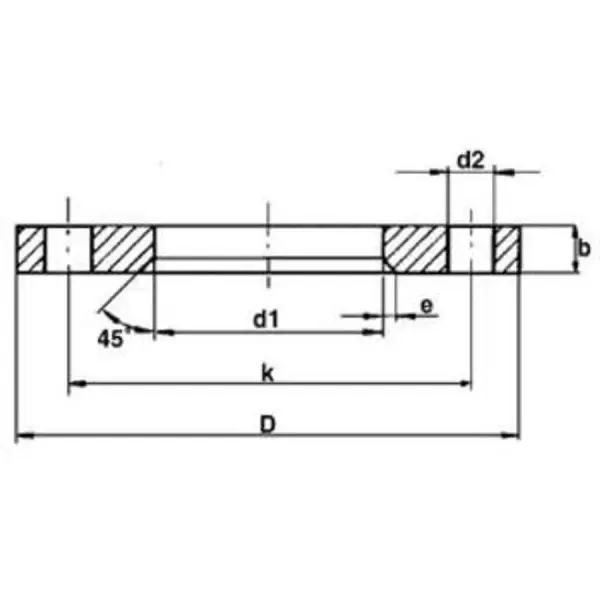

Artikelnr	DN	Dimension	Tryckklass	D	k	b	d2	d1	e	Bult	Bulthål	Vikt	Pris
BK-RK9103841	100	114.3 mm	PN16	220 mm	180 mm	18 mm	22 mm	120 mm	6 mm	M16	8 STK	3.4 kg	1109 kr
BK-RK9103842	125	139.7 mm	PN16	250 mm	210 mm	18 mm	22 mm	145 mm	6 mm	M16	8 STK	4.3 kg	1359 kr
BK-RK9103833	15	21.3 mm	PN40	95 mm	65 mm	14 mm	14 mm	25 mm	3 mm	M12	4 STK	0.65 kg	209 kr
BK-RK9103843	150	168.3 mm	PN16	285 mm	240 mm	22 mm	24 mm	174 mm	6 mm	M20	8 STK	5.2 kg	1829 kr
BK-RK9103834	20	26.9 mm	PN40	105 mm	75 mm	14 mm	16 mm	31 mm	4 mm	M12	4 STK	0.8 kg	279 kr
BK-RK9103844	200	219.1 mm	PN10	340 mm	295 mm	22 mm	24 mm	226 mm	6 mm	M20	8 STK	7.4 kg	2429 kr
BK-RK9103835	25	33.7 mm	PN40	115 mm	85 mm	14 mm	16 mm	38 mm	4 mm	M12	4 STK	1.1 kg	329 kr
BK-RK9103845	250	273.0 mm	PN10	395 mm	350 mm	22 mm	26 mm	281 mm	8 mm	M20	12 STK	9.4 kg	3139 kr
BK-RK9103846	300	323.9 mm	PN10	445 mm	400 mm	22 mm	26 mm	333 mm	8 mm	M20	12 STK	13.5 kg	3709 kr
BK-RK9103836	32	42.4 mm	PN40	140 mm	100 mm	18 mm	18 mm	47 mm	5 mm	M16	4 STK	1.6 kg	519 kr
BK-RK9103837	40	48.3 mm	PN40	150 mm	110 mm	18 mm	18 mm	53 mm	5 mm	M16	4 STK	1.8 kg	599 kr
BK-RK9103838	50	60.3 mm	PN16	165 mm	125 mm	18 mm	20 mm	65 mm	5 mm	M16	4 STK	2.2 kg	719 kr
BK-RK9156212	65	76.1 mm	PN16	185 mm	145 mm	20 mm	18 mm	81 mm	6 mm	M16	8 STK	2.6 kg	819 kr
