959 kr Det ursprungliga priset var: 959 kr.729 krDet nuvarande priset är: 729 kr. stk
Gängfläns 1.4404/316L. EN1092-1 typ13 B1.
DN25-40 = PN10-40
DN50-100 = PN10-16

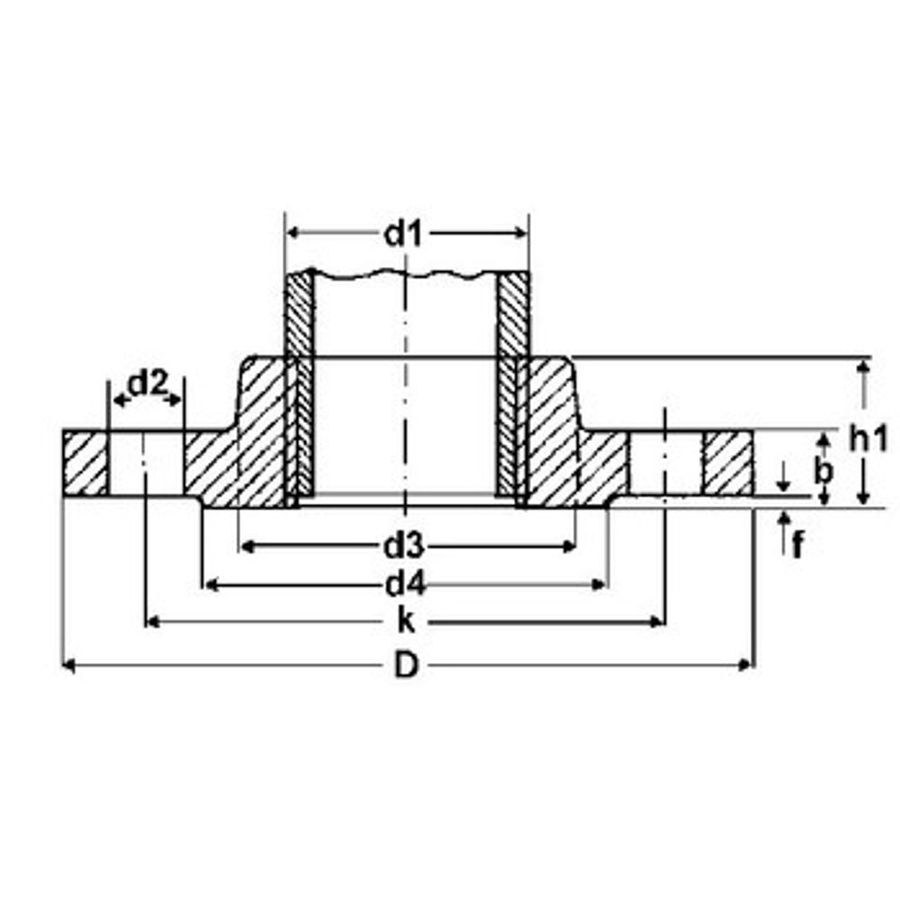

| Artikelnr | DN | Dimension | Tryckklass | D | k | b | d2 | d1 | Gänga | d3 | d4 | h1 | G | Bulthål | Vikt | Pris |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK-RK278032 | 100 | 100 mm | PN16 | 220 mm | 180 mm | 20 mm | 18 mm | 114.3 mm | M16 | 140 mm | 158 mm | 40 mm | 4 tum | 8 STK | 4.62 kg | 1239 kr |
| BK-RK278020 | 25 | 25 mm | PN40 | 115 mm | 85 mm | 18 mm | 14 mm | 33.7 mm | M12 | 52 mm | 68 mm | 28 mm | 1 tum | 4 STK | 1.30 kg | 399 kr |
| BK-RK278022 | 32 | 32 mm | PN40 | 140 mm | 100 mm | 18 mm | 18 mm | 42.4 mm | M16 | 60 mm | 88 mm | 30 mm | 1 ¼ tum | 4 STK | 1.91 kg | 569 kr |
| BK-RK278024 | 40 | 40 mm | PN40 | 150 mm | 110 mm | 18 mm | 18 mm | 48.3 mm | M16 | 70 mm | 78 mm | 32 mm | 1 ½ tum | 4 STK | 2.15 kg | 649 kr |
| BK-RK278026 | 50 | 50 mm | PN16 | 165 mm | 125 mm | 18 mm | 18 mm | 60.3 mm | M16 | 85 mm | 102 mm | 28 mm | 2 tum | 4 STK | 2.53 kg | 729 kr |
| BK-RK278028 | 65 | 65 mm | PN16 | 185 mm | 145 mm | 18 mm | 18 mm | 76.1 mm | M16 | 105 mm | 122 mm | 32 mm | 2 ½ tum | 4 STK | 3.03 kg | 839 kr |
| BK-RK278030 | 80 | 80 mm | PN16 | 200 mm | 160 mm | 20 mm | 18 mm | 88.9 mm | M16 | 118 mm | 138 mm | 34 mm | 3 tum | 8 STK | 3.92 kg | 1039 kr |
Gängfläns 1.4404/316L. EN1092-1 typ13 B1.
DN25-40 = PN10-40
DN50-100 = PN10-16
syrafast gängfläns
