Artnr: BK-RK1436112RSK: 1436112

BLINDFLÄNS 40 PN6 EN1092/05A S235

Name: BLINDFLÄNS 40 PN6 EN1092/05A S235
SKU: BK-RK1436112
Availability: InStock

Det ursprungliga priset var: 149 kr.Det nuvarande priset är: 109 kr. stk

SPARA -27% Lagervara

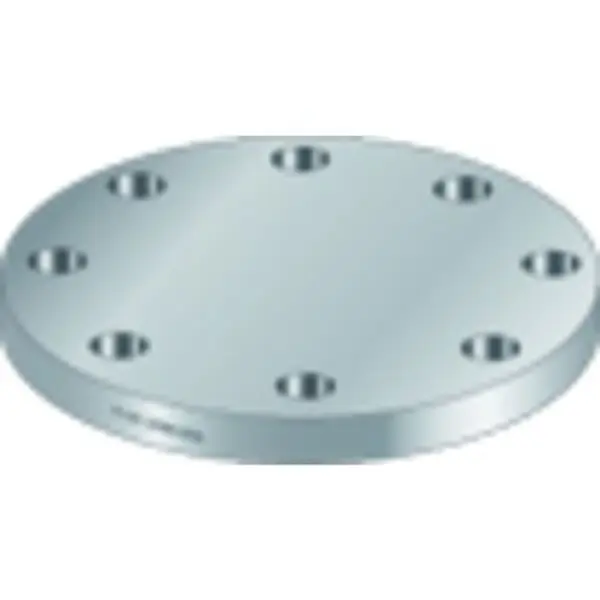

Blindfläns med plan tätyta enligt EN 1092-1 Typ 05/A.
Material S235.
DN 50-150 PN16 = PN10-16.

Lägsta pris senaste 30 dagarna: 109 kr / stk

Artikelnr	DN	Tryckklass	D	k	d2	b	Bult	Bulthål	Vikt	Dimension	Pris
BK-RK1437185	100	PN16	220 mm	180 mm	18 mm	20 mm	M16	8	5.70 kg	100	389 kr
BK-RK1436187	100	PN6	210 mm	170 mm	18 mm	16 mm	M16	4	4.80 kg	100	269 kr
BK-RK1437227	125	PN16	250 mm	210 mm	18 mm	22 mm	M16	8	8.40 kg	125	659 kr
BK-RK1436039	15	PN6	80 mm	55 mm	11 mm	12 mm	M10	4	0.40 kg	15	49 kr
BK-RK1437243	150	PN16	285 mm	240 mm	22 mm	22 mm	M20	8	10.40 kg	150	709 kr
BK-RK1436054	20	PN6	90 mm	65 mm	11 mm	14 mm	M10	4	0.70 kg	20	69 kr
BK-RK1436781	200	PN10	340 mm	295 mm	22 mm	24 mm	M20	8	15.60 kg	200	1019 kr
BK-RK1437284	200	PN16	340 mm	295 mm	22 mm	24 mm	M20	12	15.60 kg	200	1239 kr
BK-RK1436070	25	PN6	100 mm	75 mm	11 mm	14 mm	M10	4	0.80 kg	25	79 kr
BK-RK1436815	250	PN10	395 mm	350 mm	22 mm	26 mm	M20	12	23.10 kg	250	1439 kr
BK-RK1437318	250	PN16	405 mm	355 mm	26 mm	26 mm	M24	12	24.90 kg	250	1929 kr
BK-RK1436831	300	PN10	445 mm	400 mm	22 mm	26 mm	M20	12	29.40 kg	300	1949 kr
BK-RK1437334	300	PN16	460 mm	410 mm	26 mm	28 mm	M24	12	35.10 kg	300	2629 kr
BK-RK1436096	32	PN6	120 mm	90 mm	14 mm	14 mm	M12	4	1.20 kg	32	109 kr
BK-RK1436856	350	PN10	505 mm	460 mm	22 mm	26 mm	M20	16	38.00 kg	350	2589 kr
BK-RK1437359	350	PN16	520 mm	470 mm	26 mm	30 mm	M24	16	47.80 kg	350	3289 kr
BK-RK1436112	40	PN6	130 mm	100 mm	14 mm	14 mm	M12	4	1.40 kg	40	109 kr
BK-RK1436872	400	PN10	565 mm	515 mm	26 mm	26 mm	M24	16	47.50 kg	400	3209 kr
BK-RK1437375	400	PN16	580 mm	525 mm	30 mm	32 mm	M27	16	63.50 kg	400	4309 kr
BK-RK1437136	50	PN16	165 mm	125 mm	18 mm	18 mm	M16	4	2.90 kg	50	209 kr
BK-RK1436138	50	PN6	140 mm	110 mm	14 mm	14 mm	M12	4	1.60 kg	50	129 kr
BK-RK1436906	500	PN10	670 mm	620 mm	26 mm	28 mm	M24	20	72.70 kg	500	4809 kr
BK-RK1437409	500	PN16	715 mm	650 mm	33 mm	44 mm	M30	20	102.00 kg	500	9399 kr
BK-RK1437151	65	PN16	185 mm	145 mm	18 mm	18 mm	M16	4	3.70 kg	65	249 kr
BK-RK1436153	65	PN6	160 mm	130 mm	14 mm	14 mm	M12	4	2.40 kg	65	139 kr
BK-RK1437169	80	PN16	200 mm	160 mm	18 mm	20 mm	M16	8	4.80 kg	80	309 kr
BK-RK1436161	80	PN6	190 mm	150 mm	18 mm	16 mm	M16	4	3.40 kg	80	219 kr
BK-RK1436229	125	PN6	240 mm	200 mm	18 mm	18 mm	M16	8	6.10 kg	125	499 kr
BK-RK1436245	150	PN6	263 mm	225 mm	18 mm	18 mm	M16	8	7.50 kg	150	549 kr
