759 kr Det ursprungliga priset var: 759 kr.559 krDet nuvarande priset är: 559 kr. stk
| Artikelnr | DN | Tryckklass | D | k | d2 | b | Bult | Bulthål | Vikt | Dimension | Pris |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BK-RK1437185 | 100 | PN16 | 220 mm | 180 mm | 18 mm | 20 mm | M16 | 8 | 5.70 kg | 100 | 389 kr |
| BK-RK1436187 | 100 | PN6 | 210 mm | 170 mm | 18 mm | 16 mm | M16 | 4 | 4.80 kg | 100 | 309 kr |
| BK-RK1437227 | 125 | PN16 | 250 mm | 210 mm | 18 mm | 22 mm | M16 | 8 | 8.40 kg | 125 | 559 kr |
| BK-RK1436039 | 15 | PN6 | 80 mm | 55 mm | 11 mm | 12 mm | M10 | 4 | 0.40 kg | 15 | 39 kr |
| BK-RK1437243 | 150 | PN16 | 285 mm | 240 mm | 22 mm | 22 mm | M20 | 8 | 10.40 kg | 150 | 689 kr |
| BK-RK1436054 | 20 | PN6 | 90 mm | 65 mm | 11 mm | 14 mm | M10 | 4 | 0.70 kg | 20 | 59 kr |
| BK-RK1436781 | 200 | PN10 | 340 mm | 295 mm | 22 mm | 24 mm | M20 | 8 | 15.60 kg | 200 | 1149 kr |
| BK-RK1437284 | 200 | PN16 | 340 mm | 295 mm | 22 mm | 24 mm | M20 | 12 | 15.60 kg | 200 | 1069 kr |
| BK-RK1436070 | 25 | PN6 | 100 mm | 75 mm | 11 mm | 14 mm | M10 | 4 | 0.80 kg | 25 | 69 kr |
| BK-RK1436815 | 250 | PN10 | 395 mm | 350 mm | 22 mm | 26 mm | M20 | 12 | 23.10 kg | 250 | 1599 kr |
| BK-RK1437318 | 250 | PN16 | 405 mm | 355 mm | 26 mm | 26 mm | M24 | 12 | 24.90 kg | 250 | 1599 kr |
| BK-RK1436831 | 300 | PN10 | 445 mm | 400 mm | 22 mm | 26 mm | M20 | 12 | 29.40 kg | 300 | 2109 kr |
| BK-RK1437334 | 300 | PN16 | 460 mm | 410 mm | 26 mm | 28 mm | M24 | 12 | 35.10 kg | 300 | 2259 kr |
| BK-RK1436096 | 32 | PN6 | 120 mm | 90 mm | 14 mm | 14 mm | M12 | 4 | 1.20 kg | 32 | 99 kr |
| BK-RK1436856 | 350 | PN10 | 505 mm | 460 mm | 22 mm | 26 mm | M20 | 16 | 38.00 kg | 350 | 2719 kr |
| BK-RK1437359 | 350 | PN16 | 520 mm | 470 mm | 26 mm | 30 mm | M24 | 16 | 47.80 kg | 350 | 2979 kr |
| BK-RK1436112 | 40 | PN6 | 130 mm | 100 mm | 14 mm | 14 mm | M12 | 4 | 1.40 kg | 40 | 119 kr |
| BK-RK1436872 | 400 | PN10 | 565 mm | 515 mm | 26 mm | 26 mm | M24 | 16 | 47.50 kg | 400 | 3379 kr |
| BK-RK1437375 | 400 | PN16 | 580 mm | 525 mm | 30 mm | 32 mm | M27 | 16 | 63.50 kg | 400 | 4119 kr |
| BK-RK1437136 | 50 | PN16 | 165 mm | 125 mm | 18 mm | 18 mm | M16 | 4 | 2.90 kg | 50 | 199 kr |
| BK-RK1436138 | 50 | PN6 | 140 mm | 110 mm | 14 mm | 14 mm | M12 | 4 | 1.60 kg | 50 | 119 kr |
| BK-RK1436906 | 500 | PN10 | 670 mm | 620 mm | 26 mm | 28 mm | M24 | 20 | 72.70 kg | 500 | 5139 kr |
| BK-RK1437409 | 500 | PN16 | 715 mm | 650 mm | 33 mm | 44 mm | M30 | 20 | 102.00 kg | 500 | 8679 kr |
| BK-RK1437151 | 65 | PN16 | 185 mm | 145 mm | 18 mm | 18 mm | M16 | 4 | 3.70 kg | 65 | 249 kr |
| BK-RK1436153 | 65 | PN6 | 160 mm | 130 mm | 14 mm | 14 mm | M12 | 4 | 2.40 kg | 65 | 159 kr |
| BK-RK1437169 | 80 | PN16 | 200 mm | 160 mm | 18 mm | 20 mm | M16 | 8 | 4.80 kg | 80 | 319 kr |
| BK-RK1436161 | 80 | PN6 | 190 mm | 150 mm | 18 mm | 16 mm | M16 | 4 | 3.40 kg | 80 | 249 kr |
| BK-RK1436229 | 125 | PN6 | 240 mm | 200 mm | 18 mm | 18 mm | M16 | 8 | 6.10 kg | 125 | 449 kr |
| BK-RK1436245 | 150 | PN6 | 263 mm | 225 mm | 18 mm | 18 mm | M16 | 8 | 7.50 kg | 150 | 539 kr |

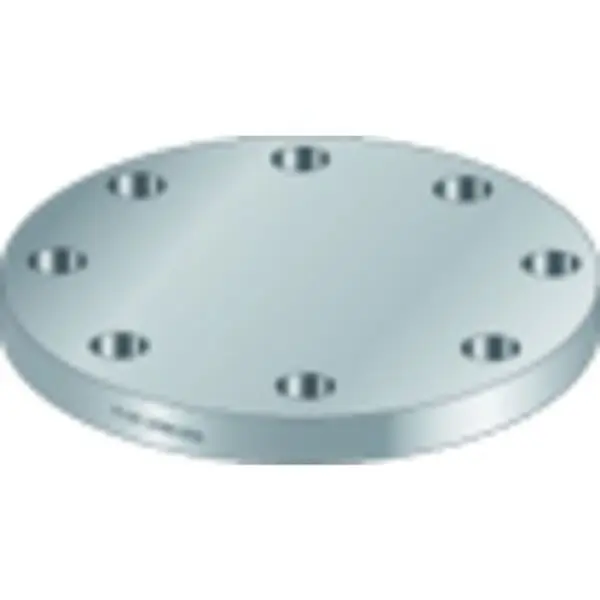

Blindfläns med plan tätyta enligt EN 1092-1 Typ 05/A.
Material S235.
DN 50-150 PN16 = PN10-16.
blindfläns
| RSK | 1437227 |
|---|
