Beskrivning
Sömlös enligt EN10253-2 Typ A (ers. DIN2605 Teil 1) Typ 5D, material P235 GH TC1. Godstjocklekar 3-22 mm med fasade ändar.
DN
50
Dimension
60,3 mm
Godstjocklek
2,9 mm

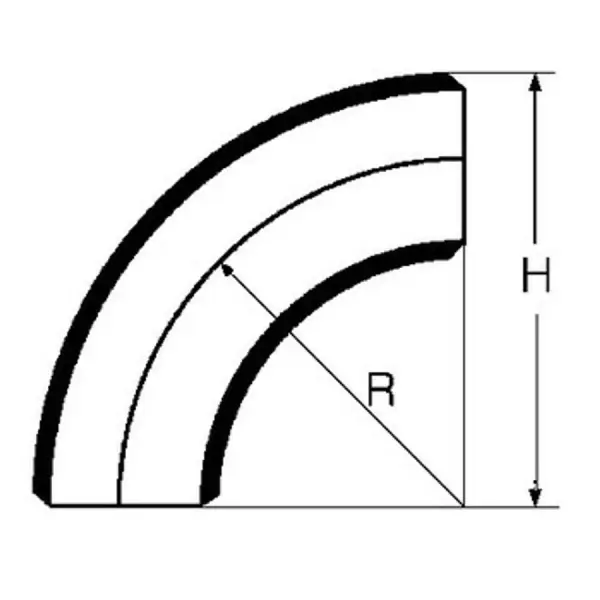

Radie
137,5
H
168 mm
Vikt
0,88 kg
tryckkärlsböjar, 5D, 5d

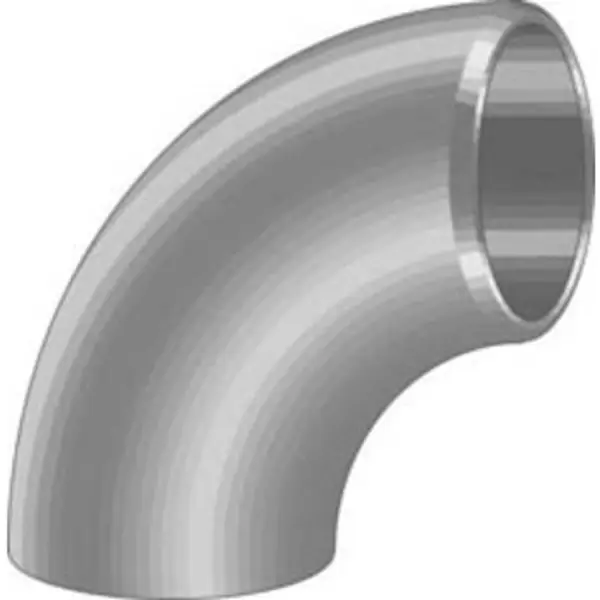

TUBBÖJ 90° 60,3X2,9 BA5 P235GH TC1
Det ursprungliga priset var: 349 kr.259 krDet nuvarande priset är: 259 kr. stk
SPARA -26% LagervaraLägsta pris senaste 30 dagarna: 259 kr / stk
- Varianter
| Artikelnr | DN | Dimension | Godstjocklek | Radie | H | Vikt | Pris |
|---|---|---|---|---|---|---|---|
| BK-RK1384361 | 500 | 508.0 mm | 11.0 mm | 1245.0 | 1500 mm | 265.00 kg | 45609 kr |
| BK-RK138420 | 450 | 457.2 mm | 10.0 mm | 1122.0 | 1350 mm | 194.00 kg | 33859 kr |
| BK-RK138440 | 600 | 609.6 mm | 12.5 mm | 1525.0 | 1830 mm | 441.00 kg | 56609 kr |
| BK-RK240648 | 125 | 133.0 mm | 4.0 mm | 312.5 | 379 mm | 7.15 kg | 1179 kr |
| BK-RK240650 | 150 | 159.0 mm | 4.5 mm | 375 | 455 mm | 10.1 kg | 1679 kr |
| BK-RK240646 | 15 | 21.3 mm | 2.0 mm | 42.5 | 53 mm | 0.15 kg | 69 kr |
| BK-RK1382662 | 100 | 114.3 mm | 3.6 mm | 270.0 | 327 mm | 3.89 kg | 949 kr |
| BK-RK1383074 | 125 | 139.7 mm | 4.0 mm | 330.0 | 400 mm | 7.80 kg | 1889 kr |
| BK-RK1383389 | 150 | 168.3 mm | 4.5 mm | 390.0 | 474 mm | 11.10 kg | 2429 kr |
| BK-RK1383611 | 200 | 219.1 mm | 6.3 mm | 515.0 | 624 mm | 26.50 kg | 4309 kr |
| BK-RK1380583 | 20 | 26.9 mm | 2.3 mm | 57.5 | 71 mm | 0.13 kg | 79 kr |
| BK-RK1383819 | 250 | 273.0 mm | 6.3 mm | 650.0 | 650 mm | 42.40 kg | 5749 kr |
| BK-RK1383926 | 300 | 323.9 mm | 7.1 mm | 770.0 | 932 mm | 67.50 kg | 6899 kr |
| BK-RK1380930 | 25 | 33.7 mm | 2.6 mm | 72.5 | 89 mm | 0.23 kg | 99 kr |
| BK-RK1384031 | 350 | 355.6 mm | 8.0 mm | 850.0 | 10128 mm | 94.50 kg | 14649 kr |
| BK-RK1384148 | 400 | 406.4 mm | 8.8 mm | 970.0 | 1173 mm | 131.00 kg | 16309 kr |
| BK-RK1381136 | 32 | 42.4 mm | 2.6 mm | 92.5 | 114 mm | 0.37 kg | 129 kr |
| BK-RK1381334 | 40 | 48.3 mm | 2.6 mm | 109.5 | 134 mm | 0.50 kg | 179 kr |
| BK-RK1381649 | 50 | 60.3 mm | 2.9 mm | 137.5 | 168 mm | 0.88 kg | 259 kr |
| BK-RK1381946 | 65 | 76.1 mm | 2.9 mm | 175.0 | 213 mm | 1.45 kg | 429 kr |
| BK-RK1382258 | 80 | 88.9 mm | 3.2 mm | 207.5 | 252 mm | 2.23 kg | 619 kr |
