Beskrivning
1.4307, ISO, EN1092-1 Typ35, PN16.
DN
200
Dimension
219,1 mm
Di
268,0 mm
Dks
207,1 mm
L
62 mm
h
11 mm
t
2,6 mm
t1
6 mm
Vikt
3,90 kg
Dy
219,1 mm
Tryckklass
PN16
holk, svetsring med krage

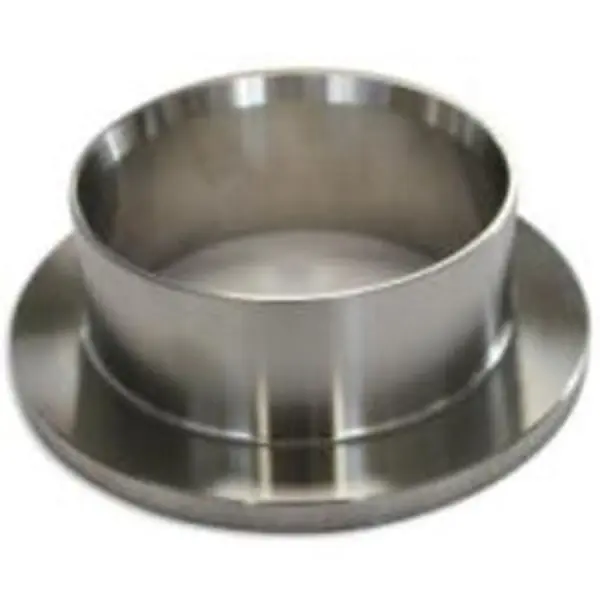

SVETSRING MED KRAGE 219,1 1.4307 PN16 EN1092-1 TYP35
Det ursprungliga priset var: 1549 kr.1189 krDet nuvarande priset är: 1189 kr. stk
SPARA -23% LagervaraLägsta pris senaste 30 dagarna: 1189 kr / stk
- Varianter
| Artikelnr | DN | Dimension | Di | Dks | L | h | t | t1 | Vikt | Dy | Pris |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BK-RK9156197 | 100 | 114.3 mm | 158.0 mm | 106.3 mm | 52 mm | 10 mm | 2 mm | 4 mm | 1.30 kg | 114.3 mm | 379 kr |
| BK-RK9156198 | 125 | 139.7 mm | 188.0 mm | 129.7 mm | 55 mm | 10 mm | 2 mm | 5 mm | 1.90 kg | 139.7 mm | 549 kr |
| BK-RK9156199 | 150 | 168.3 mm | 212.0 mm | 156.3 mm | 55 mm | 10 mm | 2 mm | 6 mm | 2.40 kg | 168.3 mm | 729 kr |
| BK-RK9156200 | 200 | 219.1 mm | 268.0 mm | 207.1 mm | 62 mm | 11 mm | 2.6 mm | 6 mm | 3.90 kg | 219.1 mm | 1189 kr |
| BK-RK9156201 | 250 | 273.0 mm | 320.0 mm | 257 mm | 70 mm | 12 mm | 3.2 mm | 8 mm | 5.80 kg | 273.0 mm | 1699 kr |
| BK-RK9156194 | 50 | 60.3 mm | 102.0 mm | 54.3 mm | 45 mm | 8 mm | 2 mm | 3 mm | 0.53 kg | 60.3 mm | 159 kr |
| BK-RK9156195 | 65 | 76.1 mm | 122.0 mm | 68.1 mm | 45 mm | 8 mm | 2 mm | 4 mm | 0.70 kg | 76.1 mm | 209 kr |
| BK-RK9156196 | 80 | 88.9 mm | 138.0 mm | 80.9 mm | 50 mm | 10 mm | 2 mm | 4 mm | 1.00 kg | 88.9 mm | 289 kr |
