Beskrivning
Material: AISI 316L.

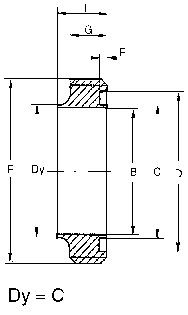

Dimension
25,0 mm
b
22,6 mm
D
32,0 mm
H
15,0 mm
E
40 x 1/6″
G
11,0 mm
Vikt
0,06 kg
A
Rd 40-6 mm
F
3,0 mm
sms koppling

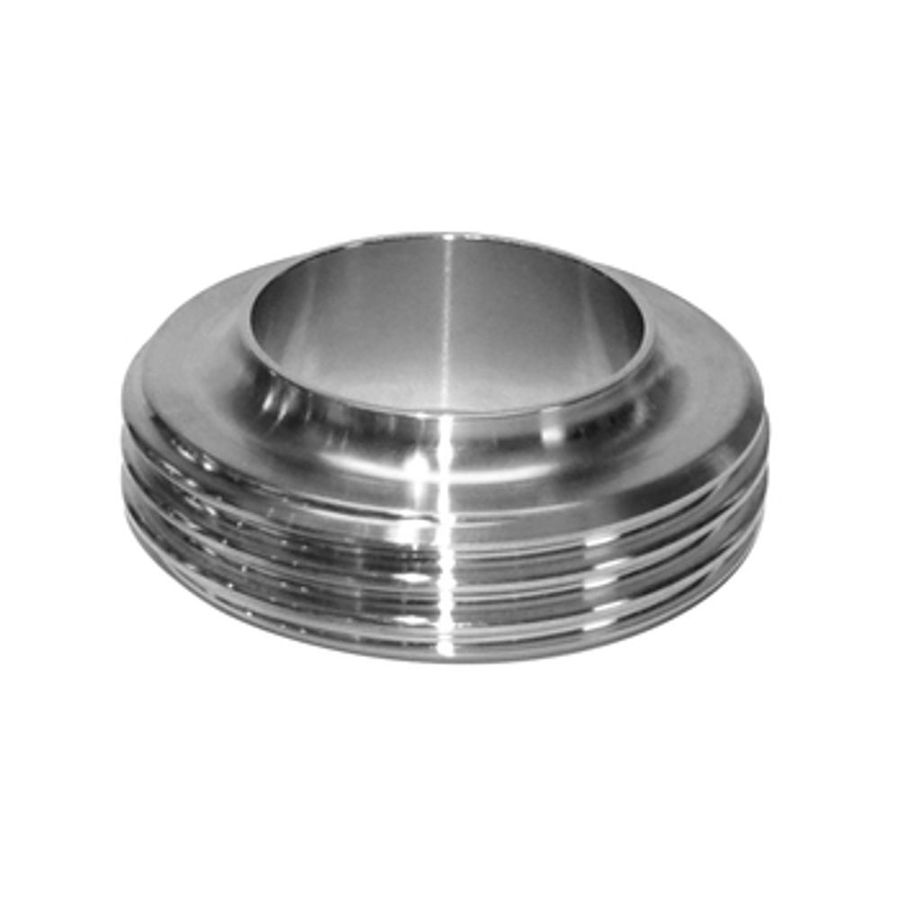

SVETSNIPPEL SMS 25 316L
Det ursprungliga priset var: 149 kr.109 krDet nuvarande priset är: 109 kr. stk
SPARA -27% I lager Snabb leverans 30 dagars öppet köp Personlig kundservice Trygg betalning
- Varianter
| Produktnamn | Dimension | b | D | H | E | G | Vikt | A | Pris |
|---|---|---|---|---|---|---|---|---|---|
| SVETSNIPPEL SMS 101.6 316L | 101.6 mm | 97.6 mm | 114.0 mm | 35.0 mm | 132 x 1/62" | 30.0 mm | 1.30 kg | RD 132-6 mm | 769 kr |
| SVETSNIPPEL SMS 25 316L | 25.0 mm | 22.6 mm | 32.0 mm | 15.0 mm | 40 x 1/6" | 11.0 mm | 0.06 kg | Rd 40-6 mm | 109 kr |
| SVETSNIPPEL SMS 32 316L | 32.0 mm | 29.6 mm | 32.0 mm | 18.0 mm | 48 x 1/6 | 18 mm | 0.12 kg | Rd 48-6 mm | 679 kr |
| SVETSNIPPEL SMS 38 316L | 38.0 mm | 35.6 mm | 48.0 mm | 20.0 mm | 60 x 1/6" | 15.0 mm | 0.18 kg | Rd 60-6 mm | 149 kr |
| SVETSNIPPEL SMS 51 316L | 51.0 mm | 48.6 mm | 61.0 mm | 20.0 mm | 70 x 1/6" | 15.0 mm | 0.20 kg | Rd 70-6 mm | 179 kr |
| SVETSNIPPEL SMS 63.5 316L | 63.5 mm | 60.3 mm | 73.5 mm | 24.0 mm | 85 x 1/6" | 19.0 mm | 0.37 kg | Rd 85-6 mm | 299 kr |
| SVETSNIPPEL SMS 76 316L | 76.0 mm | 72.0 mm | 86.0 mm | 24.0 mm | 98 x 1/6" | 19.0 mm | 0.47 kg | Rd 98-6 mm | 399 kr |
