Artnr: BK-RK9103581RSK: 9103581

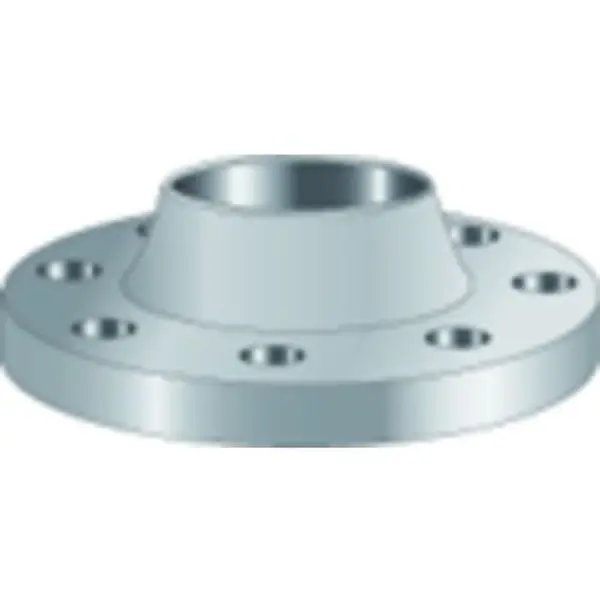

SVETSFLÄNS MED KRAGE 76,1 EN1092-1 TYP11 B1 PN16 4HÅL 1.4404

Name: SVETSFLÄNS MED KRAGE 76,1 EN1092-1 TYP11 B1 PN16 4HÅL 1.4404
SKU: BK-RK9103581
Availability: InStock

Det ursprungliga priset var: 1059 kr.Det nuvarande priset är: 809 kr. stk

SPARA -24% Lagervara

EN1092-1 Typ 11B1 ISO 1.4404/316L.

Lägsta pris senaste 30 dagarna: 809 kr / stk

Varianter

Artikelnr	DN	Dimension	Tryckklass	D	k	b	d2	d3	d4	h1	h2	r	f	s	Gänga	Bulthål	Vikt	Pris
BK-RK9103583	100 mm	114.3 mm	PN16	220 mm	180 mm	20 mm	18 mm	131 mm	158 mm	52 mm	12 mm	8 mm	3 mm	3.6 mm	M16	8 STK	4.6 kg	1179 kr
BK-RK9103685	100 mm	114.3 mm	PN40	235 mm	190 mm	24 mm	22 mm	134 mm	162 mm	65 mm	12 mm	8 mm	3 mm	3.6 mm	M20	8 STK	6.5 kg	1599 kr
BK-RK9103584	125 mm	139.7 mm	PN16	250 mm	210 mm	22 mm	18 mm	156 mm	188 mm	55 mm	12 mm	8 mm	3 mm	4.0 mm	M16	8 STK	6.3 kg	1599 kr
BK-RK9103686	125 mm	139.7 mm	PN40	270 mm	220 mm	26 mm	26 mm	162 mm	188 mm	68 mm	12 mm	8 mm	3 mm	4.0 mm	M24	8 STK	9.1 kg	2229 kr
BK-RK9103585	150 mm	168.3 mm	PN16	285 mm	240 mm	22 mm	22 mm	184 mm	212 mm	55 mm	12 mm	10 mm	3 mm	4.5 mm	M20	8 STK	7.8 kg	1939 kr
BK-RK9103687	150 mm	168.3 mm	PN40	300 mm	250 mm	28 mm	26 mm	192 mm	218 mm	75 mm	12 mm	10 mm	3 mm	4.5 mm	M24	8 STK	11.8 kg	2719 kr
BK-RK9103676	10 mm	17.2 mm	PN40	90 mm	60 mm	16 mm	14 mm	28 mm	40 mm	35 mm	6 mm	4 mm	2 mm	1.8 mm	M12	4 STK	0.7 kg	219 kr
BK-RK9103677	15 mm	21.3 mm	PN40	95 mm	65 mm	16 mm	14 mm	32 mm	45 mm	38 mm	6 mm	4 mm	2 mm	2.0 mm	M12	4 STK	0.8 kg	229 kr
BK-RK9103509	200 mm	219.1 mm	PN10	340 mm	295 mm	24 mm	22 mm	235 mm	268 mm	62 mm	16 mm	10 mm	3 mm	5.9 mm	M20	8 STK	11.3 kg	2849 kr
BK-RK9103587	200 mm	219.1 mm	PN16	340 mm	295 mm	24 mm	22 mm	235 mm	268 mm	62 mm	16 mm	10 mm	3 mm	5.9 mm	M20	12 STK	11.0 kg	2829 kr
BK-RK9103689	200 mm	219.1 mm	PN40	375 mm	320 mm	34 mm	30 mm	244 mm	285 mm	88 mm	16 mm	10 mm	3 mm	6.3 mm	M27	12 STK	21.5 kg	4989 kr
BK-RK9103678	20 mm	26.9 mm	PN40	105 mm	75 mm	18 mm	14 mm	40 mm	58 mm	40 mm	6 mm	4 mm	2 mm	2.3 mm	M12	4 STK	1.1 kg	319 kr
BK-RK9103510	250 mm	273.0 mm	PN10	395 mm	350 mm	26 mm	22 mm	292 mm	320 mm	68 mm	16 mm	12 mm	3 mm	6.3 mm	M20	12 STK	14.7 kg	3939 kr
BK-RK9103588	250 mm	273.0 mm	PN16	405 mm	355 mm	26 mm	26 mm	292 mm	320 mm	70 mm	16 mm	12 mm	3 mm	6.3 mm	M24	12 STK	15.6 kg	4219 kr
BK-RK9103511	300 mm	323.9 mm	PN10	445 mm	400 mm	26 mm	22 mm	342 mm	370 mm	68 mm	16 mm	12 mm	4 mm	7.1 mm	M20	12 STK	17.4 kg	4779 kr
BK-RK9103679	25 mm	33.7 mm	PN40	115 mm	85 mm	18 mm	14 mm	46 mm	68 mm	40 mm	6 mm	4 mm	2 mm	2.6 mm	M12	4 STK	1.3 kg	379 kr
BK-RK9103680	32 mm	42.4 mm	PN40	140 mm	100 mm	18 mm	18 mm	56 mm	78 mm	42 mm	6 mm	6 mm	2 mm	2.6 mm	M16	4 STK	1.9 kg	539 kr
BK-RK9103681	40 mm	48.3 mm	PN40	150 mm	110 mm	18 mm	18 mm	64 mm	88 mm	45 mm	7 mm	6 mm	3 mm	2.6 mm	M16	4 STK	2.3 kg	599 kr
BK-RK9103580	50 mm	60.3 mm	PN16	165 mm	125 mm	18 mm	18 mm	74 mm	102 mm	45 mm	8 mm	6 mm	3 mm	2.9 mm	M16	4 STK	2.5 kg	669 kr
BK-RK9103682	50 mm	60.3 mm	PN40	165 mm	125 mm	20 mm	18 mm	75 mm	102 mm	48 mm	8 mm	6 mm	3 mm	2.9 mm	M16	4 STK	2.8 kg	749 kr
BK-RK9103581	65 mm	76.1 mm	PN16	185 mm	145 mm	18 mm	18 mm	92 mm	122 mm	45 mm	10 mm	6 mm	3 mm	2.9 mm	M16	4 STK	3.1 kg	809 kr
BK-RK9156228	65 mm	76.1 mm	PN16	185 mm	145 mm	18 mm	18 mm	92 mm	122 mm	45 mm	10 mm	6 mm	3 mm	2.9 mm	M16	8 STK	3.1 kg	799 kr
BK-RK9103683	65 mm	76.1 mm	PN40	185 mm	145 mm	22 mm	18 mm	90 mm	122 mm	52 mm	10 mm	6 mm	3 mm	2.9 mm	M16	8 STK	3.7 kg	949 kr
BK-RK9103582	80 mm	88.9 mm	PN16	200 mm	160 mm	20 mm	18 mm	105 mm	138 mm	50 mm	10 mm	8 (6) mm	3 mm	3.2 mm	M16	8 STK	3.7 kg	969 kr
BK-RK9103684	80 mm	88.9 mm	PN40	200 mm	160 mm	24 mm	18 mm	105 mm	138 mm	58 mm	12 mm	8 mm	3 mm	3.2 mm	M16	8 STK	4.8 kg	1209 kr
