Artnr: BK-RK9103528RSK: 9103528

SVETSFLÄNS MED KRAGE 250 EN1092-1 TYP11M B1 PN10 1.4404

Name: SVETSFLÄNS MED KRAGE 250 EN1092-1 TYP11M B1 PN10 1.4404
SKU: BK-RK9103528
Availability: InStock

Det ursprungliga priset var: 6629 kr.Det nuvarande priset är: 5379 kr. stk

SPARA -19% Lagervara

Lägsta pris senaste 30 dagarna: 5379 kr / stk

Varianter

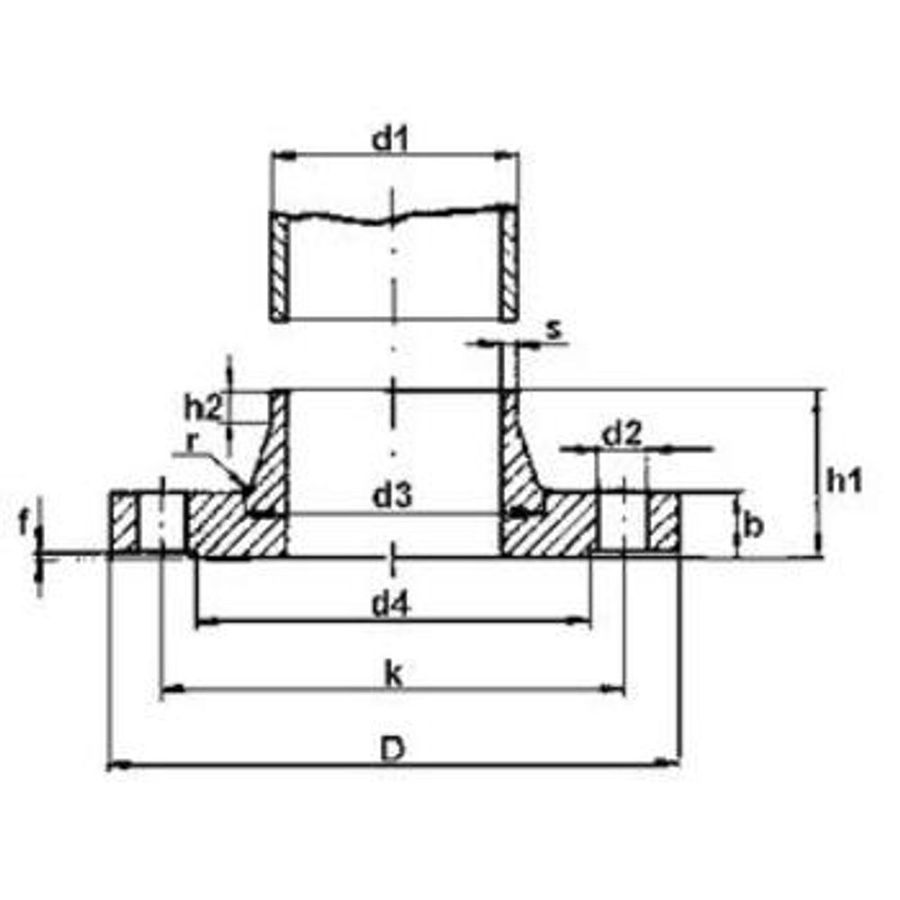

Artikelnr	DN	Dimension	Tryckklass	D	k	b	d2	d3	d4	h2	h1	r	s	f	Gänga	Bulthål	Vikt	Pris
BK-RK9103623	100 mm	104.0 mm	PN16	220 mm	180 mm	20 mm	18 mm	125 mm	158 mm	12 mm	52 mm	8 mm	3.6 mm	3 mm	M16	8 STK	4.6 kg	1229 kr
BK-RK9103721	100 mm	104.0 mm	PN40	235 mm	190 mm	24 mm	22 mm	128 mm	162 mm	12 mm	65 mm	8 mm	3.6 mm	3 mm	M20	8 STK	6.5 kg	1759 kr
BK-RK9103624	125 mm	129.0 mm	PN16	250 mm	210 mm	22 mm	18 mm	150 mm	188 mm	12 mm	55 mm	8 mm	4.0 mm	3 mm	M16	8 STK	6.3 kg	1649 kr
BK-RK9103722	125 mm	129.0 mm	PN40	270 mm	220 mm	26 mm	26 mm	155 mm	188 mm	12 mm	68 mm	8 mm	4.0 mm	3 mm	M24	8 STK	9.1 kg	3039 kr
BK-RK9103713	15 mm	20.0 mm	PN40	95 mm	65 mm	16 mm	14 mm	30 mm	45 mm	6 mm	38 mm	4 mm	2.0 mm	2 mm	M12	4 STK	0.8 kg	299 kr
BK-RK9103625	150 mm	154.0 mm	PN16	285 mm	240 mm	22 mm	22 mm	175 mm	212 mm	12 mm	55 mm	10 mm	4.5 mm	3 mm	M20	8 STK	7.8 kg	2079 kr
BK-RK9103723	150 mm	154.0 mm	PN40	300 mm	250 mm	28 mm	26 mm	182 mm	218 mm	12 mm	75 mm	10 mm	4.5 mm	3 mm	M24	8 STK	11.8 kg	2899 kr
BK-RK9103714	20 mm	25.0 mm	PN40	105 mm	75 mm	18 mm	14 mm	38 mm	58 mm	6 mm	40 mm	4 mm	2.3 mm	2 mm	M12	4 STK	1.1 kg	319 kr
BK-RK9103527	200 mm	204.0 mm	PN10	340 mm	295 mm	24 mm	22 mm	235 mm	268 mm	16 mm	62 mm	10 mm	5.9 mm	3 mm	M20	8 STK	11.3 kg	2999 kr
BK-RK9103627	200 mm	204.0 mm	PN16	340 mm	295 mm	24 mm	22 mm	235 mm	268 mm	16 mm	62 mm	10 mm	5.9 mm	3 mm	M20	12 STK	11.0 kg	2969 kr
BK-RK9103715	25 mm	30.0 mm	PN40	115 mm	85 mm	18 mm	14 mm	42 mm	68 mm	6 mm	40 mm	4 mm	2.6 mm	2 mm	M12	4 STK	1.3 kg	389 kr
BK-RK9103528	250 mm	254.0 mm	PN10	395 mm	350 mm	26 mm	22 mm	292 mm	320 mm	16 mm	68 mm	12 mm	6.3 mm	3 mm	M20	12 STK	14.7 kg	5379 kr
BK-RK9103628	250 mm	254.0 mm	PN16	405 mm	355 mm	26 mm	26 mm	285 mm	320 mm	16 mm	70 mm	12 mm	6.3 mm	3 mm	M24	12 STK	15.6 kg	4549 kr
BK-RK9103529	300 mm	306.0 mm	PN10	445 mm	400 mm	26 mm	22 mm	342 mm	370 mm	16 mm	68 mm	12 mm	7.1 mm	4 mm	M20	12 STK	17.4 kg	6549 kr
BK-RK9103629	300 mm	306.0 mm	PN16	460 mm	410 mm	28 mm	26 mm	344 mm	378 mm	16 mm	78 mm	12 mm	7.1 mm	4 mm	M24	12 STK	22.0 kg	7129 kr
BK-RK9103716	32 mm	38.0 mm	PN40	140 mm	100 mm	18 mm	18 mm	52 mm	78 mm	6 mm	42 mm	6 mm	2.6 mm	2 mm	M16	4 STK	1.9 kg	549 kr
BK-RK9103717	40 mm	44.5 mm	PN40	150 mm	110 mm	18 mm	18 mm	60 mm	88 mm	7 mm	45 mm	6 mm	2.6 mm	3 mm	M16	4 STK	2.3 kg	659 kr
BK-RK9103620	50 mm	54.0 mm	PN16	165 mm	125 mm	18 mm	18 mm	74 mm	102 mm	8 mm	45 mm	6 mm	2.9 mm	3 mm	M16	4 STK	2.5 kg	699 kr
BK-RK9103718	50 mm	54.0 mm	PN40	165 mm	125 mm	20 mm	18 mm	72 mm	102 mm	8 mm	48 mm	6 mm	2.9 mm	3 mm	M16	4 STK	2.8 kg	779 kr
BK-RK9103621	65 mm	70.0 mm	PN16	185 mm	145 mm	18 mm	18 mm	92 mm	122 mm	10 mm	45 mm	6 mm	2.9 mm	3 mm	M16	4 STK	3.0 kg	829 kr
BK-RK9103719	65 mm	70.0 mm	PN40	185 mm	145 mm	22 mm	18 mm	90 mm	122 mm	10 mm	52 mm	6 mm	2.9 mm	3 mm	M16	8 STK	3.7 kg	1369 kr
BK-RK9103622	80 mm	84.0 mm	PN16	200 mm	160 mm	20 mm	18 mm	105 mm	138 mm	10 mm	50 mm	8 mm	3.2 mm	3 mm	M16	8 STK	3.7 kg	1009 kr
BK-RK9103720	80 mm	84.0 mm	PN40	200 mm	160 mm	24 mm	18 mm	105 mm	138 mm	12 mm	58 mm	8 mm	3.2 mm	3 mm	M16	8 STK	4.8 kg	1659 kr

Beskrivning
Mer information

Beskrivning

EN1092-1 Typ 11B1 Metriska 1.4404/316L.

250 mm

Dimension

254,0 mm

Tryckklass

PN10

395 mm

350 mm

26 mm

22 mm

292 mm

320 mm

16 mm

68 mm

12 mm

6,3 mm

3 mm

Gänga

M20

Bulthål

12 STK

Vikt

14,7 kg

syrafast svetsfläns,

Ytterligare information

RSK	9103528

Sortiment

SVETSFLÄNS MED KRAGE 250 EN1092-1 TYP11M B1 PN10 1.4404

SVETSFLÄNS MED KRAGE 250 EN1092-1 TYP11M B1 PN10 1.4404

Beskrivning

Ytterligare information

BRICKA BRB M20X37 A4 2343 SWEBOLT

BULT M6S M20X120 2343

MUTTER M6M M20 2343 A4
