Beskrivning
EN1092-1 Typ 11B1 ISO 1.4307/304L.
DN
100 mm
Dimension
114,3 mm
Tryckklass
PN16

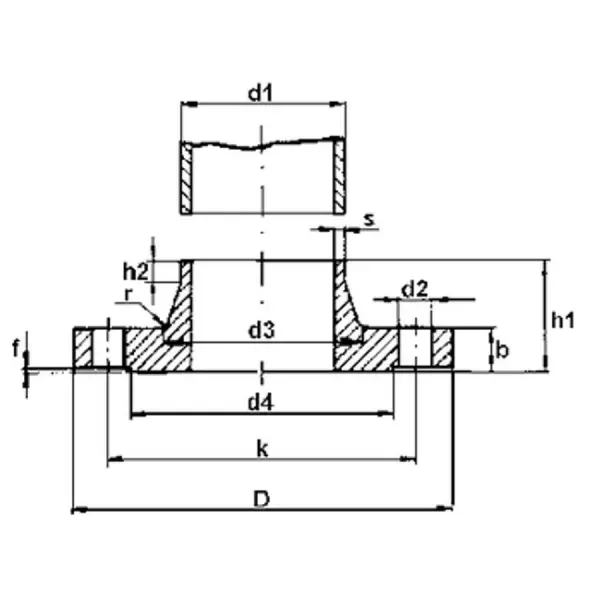

D
220 mm
k
180 mm
b
20 mm
d2
18 mm
d3
131 mm
d4
158 mm
h1
52 mm
h2
12 mm
r
8 mm
f
3 mm
s
3,6 mm
Bulthål
8 STK
Gänga
M16
Vikt
4,6 kg

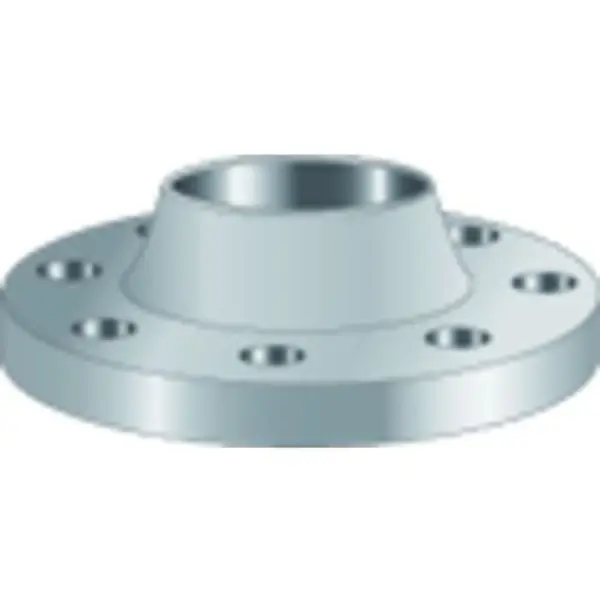

rostfri svetsfläns
SVETSFLÄNS MED KRAGE 114,3 EN1092-1 TYP11 B1 PN16 1.4307
Det ursprungliga priset var: 1169 kr.899 krDet nuvarande priset är: 899 kr. stk
SPARA -23% LagervaraEN1092-1 Typ 11B1 ISO 1.4307/304L.
Lägsta pris senaste 30 dagarna: 899 kr / stk
| Artikelnr | DN | Dimension | Tryckklass | D | k | b | d2 | d3 | d4 | h1 | h2 | r | f | s | Bulthål | Gänga | Vikt | Pris |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK-RK9103563 | 100 mm | 114.3 mm | PN16 | 220 mm | 180 mm | 20 mm | 18 mm | 131 mm | 158 mm | 52 mm | 12 mm | 8 mm | 3 mm | 3.6 mm | 8 STK | M16 | 4.6 kg | 899 kr |
| BK-RK9103564 | 125 mm | 139.7 mm | PN16 | 250 mm | 210 mm | 22 mm | 18 mm | 156 mm | 188 mm | 55 mm | 12 mm | 8 mm | 3 mm | 4.0 mm | 8 STK | M16 | 6.3 kg | 1269 kr |
| BK-RK9103565 | 150 mm | 168.3 mm | PN16 | 285 mm | 240 mm | 22 mm | 22 mm | 184 mm | 212 mm | 55 mm | 12 mm | 10 mm | 3 mm | 4.5 mm | 8 STK | M20 | 7.8 kg | 1469 kr |
| BK-RK9103659 | 15 mm | 21.3 mm | PN40 | 95 mm | 65 mm | 16 mm | 14 mm | 32 mm | 45 mm | 38 mm | 6 mm | 4 mm | 2 mm | 2.0 mm | 4 STK | M12 | 0.8 kg | 179 kr |
| BK-RK9103567 | 200 mm | 219.1 mm | PN16 | 340 mm | 295 mm | 24 mm | 22 mm | 235 mm | 268 mm | 62 mm | 16 mm | 10 mm | 3 mm | 5.9 mm | 12 STK | M20 | 11.0 kg | 2239 kr |
| BK-RK9103660 | 20 mm | 26.9 mm | PN40 | 105 mm | 75 mm | 18 mm | 14 mm | 40 mm | 58 mm | 40 mm | 6 mm | 4 mm | 2 mm | 2.3 mm | 4 STK | M12 | 1.1 kg | 249 kr |
| BK-RK9103661 | 25 mm | 33.7 mm | PN40 | 115 mm | 85 mm | 18 mm | 14 mm | 46 mm | 68 mm | 40 mm | 6 mm | 4 mm | 2 mm | 2.6 mm | 4 STK | M12 | 1.3 kg | 299 kr |
| BK-RK9103662 | 32 mm | 42.4 mm | PN40 | 140 mm | 100 mm | 18 mm | 18 mm | 56 mm | 78 mm | 42 mm | 6 mm | 6 mm | 2 mm | 2.6 mm | 4 STK | M16 | 1.9 kg | 419 kr |
| BK-RK9103663 | 40 mm | 48.3 mm | PN40 | 150 mm | 110 mm | 18 mm | 18 mm | 64 mm | 88 mm | 45 mm | 7 mm | 6 mm | 3 mm | 2.6 mm | 4 STK | M16 | 2.3 kg | 459 kr |
| BK-RK9103560 | 50 mm | 60.3 mm | PN16 | 165 mm | 125 mm | 18 mm | 18 mm | 74 mm | 102 mm | 45 mm | 8 mm | 6 mm | 3 mm | 2.9 mm | 4 STK | M16 | 2.5 kg | 539 kr |
| BK-RK9103664 | 50 mm | 60.3 mm | PN40 | 165 mm | 125 mm | 20 mm | 18 mm | 75 mm | 102 mm | 48 mm | 8 mm | 6 mm | 3 mm | 2.9 mm | 4 STK | M16 | 2.8 kg | 599 kr |
| BK-RK9103561 | 65 mm | 76.4 mm | PN16 | 185 mm | 145 mm | 18 mm | 18 mm | 92 mm | 122 mm | 45 mm | 10 mm | 6 mm | 3 mm | 2.9 mm | 4 STK | M16 | 3.1 kg | 649 kr |
| BK-RK9156224 | 65 mm | 76.4 mm | PN16 | 185 mm | 145 mm | 18 mm | 18 mm | 92 mm | 122 mm | 45 mm | 10 mm | 6 mm | 3 mm | 2.9 mm | 8 STK | M16 | 3.1 kg | 629 kr |
| BK-RK278034 | 65 mm | 76.1 mm | PN6 | 185 mm | 130 mm | 14 mm | 14 mm | 88 mm | 110 mm | 38 mm | 9 mm | 6 mm | 3 mm | 2.9 mm | 4 STK | M12 | 1.77 kg | 739 kr |
| BK-RK9103562 | 80 mm | 88.9 mm | PN16 | 200 mm | 160 mm | 20 mm | 18 mm | 105 mm | 138 mm | 50 mm | 10 mm | 8 mm | 3 mm | 3.2 mm | 8 STK | M16 | 3.7 kg | 739 kr |
| BK-RK278036 | 80 mm | 88.9 mm | PN6 | 200 mm | 150 mm | 16 mm | 10 mm | 102 mm | 128 mm | 42 mm | 10 mm | 8 mm | 3 mm | 3.2 mm | 4 STK | M16 | 2.88 kg | 929 kr |
