Artnr: BK-RK1423250RSK: 1423250

SVETSFLÄNS 150/168 PN16 EN1092/11

Name: SVETSFLÄNS 150/168 PN16 EN1092/11
SKU: BK-RK1423250
Availability: InStock

Det ursprungliga priset var: 839 kr.Det nuvarande priset är: 619 kr. stk

SPARA -26% Lagervara

Lägsta pris senaste 30 dagarna: 619 kr / stk

Varianter

Artikelnr	DN	Dimension	Tryckklass	D	k	d1	d2	d3	d4	h1	h2	b	r	f	s	Bult	Bulthål	Vikt	Pris
BK-RK1424027	10	17.2 mm	PN40	90 mm	60 mm	17.2 mm	14 mm	28 mm	40 mm	35 mm	6 mm	16 mm	4 mm	2 mm	2.0 mm	M12	4 STK	0.7 kg	69 kr
BK-RK1423201	100	108.0 mm	PN16	220 mm	180 mm	108.0 mm	18 mm	131 mm	158 mm	52 mm	12 mm	20 mm	8 mm	3 mm	3.6 mm	M16	8 STK	4.6 kg	379 kr
BK-RK1425198	100	114.3 mm	PN100	265 mm	210 mm	114.3 mm	30 mm	150 mm	162 mm	90 mm	12 mm	36 mm	8 mm	3 mm	5.6 mm	M27	8 STK	13.7 kg	1139 kr
BK-RK1423219	100	114.3 mm	PN16	220 mm	180 mm	114.3 mm	18 mm	131 mm	158 mm	52 mm	12 mm	20 mm	8 mm	3 mm	3.6 mm	M16	8 STK	4.6 kg	369 kr
BK-RK1424191	100	114.3 mm	PN40	235 mm	190 mm	114.3 mm	22 mm	134 mm	162 mm	65 mm	12 mm	24 mm	8 mm	3 mm	3.6 mm	M20	8 STK	6.5 kg	529 kr
BK-RK1422203	100	114.3 mm	PN6	210 mm	170 mm	114.3 mm	18 mm	130 mm	148 mm	45 mm	10 mm	16 mm	8 mm	3 mm	3.6 mm	M16	4 STK	3.2 kg	319 kr
BK-RK1424696	100	114.3 mm	PN64	250 mm	200 mm	114.3 mm	26 mm	138 mm	162 mm	78 mm	12 mm	30 mm	8 mm	3 mm	4.5 mm	M24	8 STK	9.7 kg	769 kr
BK-RK1423227	125	133.0 mm	PN16	250 mm	210 mm	133.0 mm	18 mm	156 mm	188 mm	55 mm	12 mm	22 mm	8 mm	3 mm	4.0 mm	M16	8 STK	6.3 kg	509 kr
BK-RK1423235	125	139.7 mm	PN16	250 mm	210 mm	139.7 mm	18 mm	156 mm	188 mm	55 mm	12 mm	22 mm	8 mm	3 mm	4.0 mm	M16	8 STK	6.3 kg	499 kr
BK-RK1424233	125	139.7 mm	PN40	270 mm	220 mm	139.7 mm	26 mm	162 mm	188 mm	68 mm	12 mm	26 mm	8 mm	3 mm	4.0 mm	M24	8 STK	9.1 kg	709 kr
BK-RK1422237	125	139.7 mm	PN6	240 mm	200 mm	139.7 mm	18 mm	155 mm	178 mm	48 mm	10 mm	18 mm	8 mm	3 mm	4.0 mm	M16	8 STK	4.5 kg	419 kr
BK-RK1424738	125	139.7 mm	PN64	295 mm	240 mm	139.7 mm	30 mm	168 mm	188 mm	88 mm	12 mm	34 mm	8 mm	3 mm	5.6 mm	M27	8 STK	15.1 kg	1209 kr
BK-RK1425040	15	21.3 mm	PN100	105 mm	75 mm	21.3 mm	14 mm	34 mm	45 mm	45 mm	6 mm	20 mm	4 mm	2 mm	3.2 mm	M12	4 STK	1.2 kg	119 kr
BK-RK1424043	15	21.3 mm	PN40	95 mm	65 mm	21.3 mm	14 mm	32 mm	45 mm	38 mm	6 mm	16 mm	4 mm	2 mm	2.0 mm	M12	4 STK	0.8 kg	79 kr
BK-RK1422047	15	21.3 mm	PN6	80 mm	55 mm	21.3 mm	11 mm	30 mm	40 mm	30 mm	6 mm	12 mm	4 mm	2 mm	2.0 mm	M10	4 STK	0.4 kg	49 kr
BK-RK1423243	150	159.0 mm	PN16	285 mm	240 mm	159.0 mm	22 mm	184 mm	212 mm	55 mm	12 mm	22 mm	10 mm	3 mm	4.5 mm	M20	8 STK	7.8 kg	629 kr
BK-RK1423250	150	168.3 mm	PN16	285 mm	240 mm	168.3 mm	22 mm	184 mm	212 mm	55 mm	12 mm	22 mm	10 mm	3 mm	4.5 mm	M20	8 STK	7.8 kg	619 kr
BK-RK1424258	150	168.3 mm	PN40	300 mm	250 mm	168.3 mm	26 mm	192 mm	218 mm	75 mm	12 mm	28 mm	10 mm	3 mm	4.5 mm	M24	8 STK	11.8 kg	929 kr
BK-RK1422252	150	168.3 mm	PN6	265 mm	225 mm	168.3 mm	18 mm	184 mm	202 mm	48 mm	12 mm	18 mm	10 mm	3 mm	4.5 mm	M16	8 STK	5.2 kg	489 kr
BK-RK1424753	150	168.3 mm	PN64	345 mm	280 mm	168.3 mm	33 mm	202 mm	218 mm	95 mm	12 mm	36 mm	10 mm	3 mm	6.3 mm	M30	8 STK	21.9 kg	1709 kr
BK-RK1423268	175	193.0 mm	PN16	315 mm	270 mm	193.7 mm	22 mm	210 mm	242 mm	60 mm	12 mm	24 mm	10 mm	3 mm	5.4 mm	M20	8 STK	9.9 kg	889 kr
BK-RK1425065	20	26.9 mm	PN100	130 mm	90 mm	26.9 mm	18 mm	44 mm	58 mm	52 mm	8 mm	22 mm	4 mm	2 mm	2.3 mm	M16	4 STK	2.1 kg	199 kr
BK-RK1424068	20	26.9 mm	PN40	105 mm	75 mm	26.9 mm	14 mm	40 mm	58 mm	40 mm	6 mm	18 mm	4 mm	2 mm	2.3 mm	M12	4 STK	1.1 kg	99 kr
BK-RK1422062	20	26.9 mm	PN6	90 mm	65 mm	26.9 mm	11 mm	38 mm	50 mm	32 mm	6 mm	14 mm	4 mm	2 mm	2.3 mm	M10	4 STK	0.6 kg	69 kr
BK-RK1422781	200	219.0 mm	PN10	340 mm	295 mm	219.1 mm	22 mm	234 mm	268 mm	62 mm	16 mm	24 mm	10 mm	3 mm	6.5 mm	M20	8 STK	11.3 kg	999 kr
BK-RK1423284	200	219.0 mm	PN16	340 mm	295 mm	219.1 mm	22 mm	235 mm	268 mm	62 mm	16 mm	24 mm	10 mm	3 mm	5.9 mm	M20	12 STK	11 kg	869 kr
BK-RK1423789	200	219.0 mm	PN25	360 mm	310 mm	219.1 mm	26 mm	244 mm	278 mm	80 mm	16 mm	30 mm	10 mm	3 mm	6.3 mm	M24	12 STK	17 kg	1279 kr
BK-RK1424282	200	219.0 mm	PN40	375 mm	320 mm	219.1 mm	30 mm	244 mm	285 mm	88 mm	16 mm	34 mm	10 mm	3 mm	6.3 mm	M27	12 STK	21.5 kg	1599 kr
BK-RK1422286	200	219.0 mm	PN6	320 mm	280 mm	219.1 mm	18 mm	236 mm	258 mm	55 mm	15 mm	20 mm	10 mm	3 mm	6.3 mm	M16	8 STK	7.8 kg	759 kr
BK-RK1424787	200	219.0 mm	PN64	415 mm	345 mm	219.1 mm	36 mm	256 mm	285 mm	110 mm	16 mm	42 mm	10 mm	3 mm	7.1 mm	M33	12 STK	34.9 kg	2619 kr
BK-RK1425081	25	33.7 mm	PN100	140 mm	100 mm	33.7 mm	18 mm	52 mm	68 mm	58 mm	8 mm	24 mm	4 mm	2 mm	3.6 mm	M16	4 STK	2.7 kg	259 kr
BK-RK1424084	25	33.7 mm	PN40	115 mm	85 mm	33.7 mm	14 mm	46 mm	68 mm	40 mm	6 mm	18 mm	4 mm	2 mm	2.6 mm	M12	4 STK	1.3 kg	119 kr
BK-RK1422088	25	33.7 mm	PN6	100 mm	75 mm	33.7 mm	11 mm	42 mm	60 mm	35 mm	6 mm	14 mm	4 mm	2 mm	2.6 mm	M10	4 STK	0.8 kg	89 kr
BK-RK1422823	250	273.0 mm	PN10	395 mm	350 mm	273.0 mm	22 mm	292 mm	320 mm	68 mm	16 mm	26 mm	12 mm	3 mm	6.3 mm	M20	12 STK	14.7 kg	1309 kr
BK-RK1423326	250	273.0 mm	PN16	405 mm	355 mm	273.0 mm	26 mm	292 mm	320 mm	70 mm	16 mm	26 mm	12 mm	3 mm	6.3 mm	M24	12 STK	15.6 kg	1279 kr
BK-RK1423821	250	273.0 mm	PN25	425 mm	370 mm	273.0 mm	30 mm	298 mm	335 mm	88 mm	18 mm	32 mm	12 mm	3 mm	7.1 mm	M27	12 STK	24.4 kg	1839 kr
BK-RK1424324	250	273.0 mm	PN40	450 mm	385 mm	273.0 mm	33 mm	306 mm	345 mm	105 mm	18 mm	38 mm	12 mm	3 mm	7.1 mm	M30	12 STK	34.9 kg	2529 kr
BK-RK1422328	250	273.0 mm	PN6	375 mm	335 mm	273.0 mm	18 mm	290 mm	312 mm	60 mm	15 mm	22 mm	12 mm	3 mm	6.3 mm	M16	12 STK	10.8 kg	999 kr
BK-RK1422831	300	323.9 mm	PN10	445 mm	400 mm	323.9 mm	22 mm	342 mm	370 mm	68 mm	16 mm	26 mm	12 mm	4 mm	7.1 mm	M20	12 STK	17.4 kg	1549 kr
BK-RK1423334	300	323.9 mm	PN16	460 mm	410 mm	323.9 mm	26 mm	344 mm	378 mm	78 mm	16 mm	28 mm	12 mm	4 mm	7.1 mm	M24	12 STK	22 kg	1619 kr
BK-RK1423839	300	323.9 mm	PN25	485 mm	430 mm	323.9 mm	30 mm	352 mm	395 mm	92 mm	18 mm	34 mm	12 mm	4 mm	8.0 mm	M27	16 STK	31.2 kg	1879 kr
BK-RK1424332	300	323.9 mm	PN40	515 mm	450 mm	323.9 mm	33 mm	362 mm	410 mm	115 mm	18 mm	42 mm	12 mm	4 mm	8.0 mm	M30	16 STK	49.7 kg	3509 kr
BK-RK1422336	300	323.9 mm	PN6	440 mm	395 mm	323.9 mm	22 mm	342 mm	365 mm	62 mm	15 mm	22 mm	12 mm	4 mm	7.1 mm	M20	12 STK	14 kg	1259 kr
BK-RK1425107	32	42.4 mm	PN100	155 mm	110 mm	42.4 mm	22 mm	62 mm	75 mm	60 mm	8 mm	24 mm	6 mm	2 mm	2.6 mm	M20	4 STK	3.2 kg	309 kr
BK-RK1424100	32	42.4 mm	PN40	140 mm	100 mm	42.4 mm	18 mm	56 mm	78 mm	42 mm	6 mm	18 mm	6 mm	2 mm	2.6 mm	M16	4 STK	1.9 kg	179 kr
BK-RK1422104	32	42.4 mm	PN6	120 mm	90 mm	42.4 mm	14 mm	55 mm	70 mm	35 mm	6 mm	14 mm	6 mm	2 mm	2.6 mm	M12	4 STK	1.1 kg	129 kr
BK-RK1422856	350	355.6 mm	PN10	505 mm	460 mm	355.6 mm	22 mm	385 mm	430 mm	68 mm	16 mm	26 mm	12 mm	4 mm	7.1 mm	M20	16 STK	23.6 kg	2229 kr
BK-RK1423359	350	355.6 mm	PN16	520 mm	470 mm	355.6 mm	26 mm	390 mm	438 mm	82 mm	16 mm	30 mm	12 mm	4 mm	8.0 mm	M24	16 STK	31.2 kg	2489 kr
BK-RK1423854	350	355.6 mm	PN25	555 mm	490 mm	355.6 mm	33 mm	398 mm	450 mm	100 mm	20 mm	38 mm	12 mm	4 mm	8.0 mm	M30	16 STK	47.2 kg	3829 kr
BK-RK1424357	350	355.6 mm	PN40	580 mm	510 mm	355.6 mm	36 mm	408 mm	465 mm	125 mm	20 mm	46 mm	12 mm	4 mm	8.8 mm	M33	16 STK	68.1 kg	5529 kr
BK-RK1422351	350	355.6 mm	PN6	490 mm	445 mm	355.6 mm	22 mm	385 mm	415 mm	62 mm	15 mm	22 mm	12 mm	4 mm	7.1 mm	M20	12 STK	18.5 kg	1849 kr
BK-RK1425123	40	48.3 mm	PN100	170 mm	125 mm	48.3 mm	22 mm	70 mm	88 mm	62 mm	10 mm	26 mm	6 mm	3 mm	3.6 mm	M20	4 STK	4.1 kg	389 kr
BK-RK1424126	40	48.3 mm	PN40	150 mm	110 mm	48.3 mm	18 mm	64 mm	88 mm	45 mm	7 mm	18 mm	6 mm	3 mm	2.6 mm	M16	4 STK	2.3 kg	209 kr
BK-RK1422120	40	48.3 mm	PN6	130 mm	100 mm	48.3 mm	14 mm	62 mm	80 mm	38 mm	7 mm	14 mm	6 mm	3 mm	2.6 mm	M12	4 STK	1.2 kg	139 kr
BK-RK1422872	400	406.4 mm	PN10	565 mm	515 mm	406.4 mm	26 mm	440 mm	482 mm	72 mm	16 mm	26 mm	12 mm	4 mm	7.1 mm	M24	16 STK	28.6 kg	2589 kr
BK-RK1423375	400	406.4 mm	PN16	580 mm	525 mm	406.4 mm	30 mm	445 mm	490 mm	85 mm	16 mm	32 mm	12 mm	4 mm	8.0 mm	M27	16 STK	39.3 kg	3129 kr
BK-RK1423870	400	406.4 mm	PN25	620 mm	550 mm	406.4 mm	36 mm	452 mm	505 mm	110 mm	20 mm	40 mm	12 mm	4 mm	8.8 mm	M33	16 STK	61.7 kg	4949 kr
BK-RK1424373	400	406.4 mm	PN40	660 mm	585 mm	406.4 mm	39 mm	462 mm	535 mm	135 mm	20 mm	50 mm	12 mm	4 mm	11.0 mm	M36	16 STK	96.5 kg	7829 kr
BK-RK1422377	400	406.4 mm	PN6	540 mm	495 mm	406.4 mm	22 mm	438 mm	465 mm	65 mm	15 mm	22 mm	12 mm	4 mm	7.1 mm	M20	16 STK	21.2 kg	2109 kr
BK-RK1425149	50	60.3 mm	PN100	195 mm	145 mm	60.3 mm	26 mm	90 mm	102 mm	68 mm	10 mm	28 mm	6 mm	3 mm	4.0 mm	M24	4 STK	6 kg	549 kr
BK-RK1423144	50	60.3 mm	PN16	165 mm	125 mm	60.3 mm	18 mm	74 mm	102 mm	45 mm	8 mm	18 mm	6 mm	3 mm	2.9 mm	M16	4 STK	2.5 kg	209 kr
BK-RK1424142	50	60.3 mm	PN40	165 mm	125 mm	60.3 mm	18 mm	75 mm	102 mm	48 mm	8 mm	20 mm	6 mm	3 mm	2.9 mm	M16	4 STK	2.8 kg	249 kr
BK-RK1422146	50	60.3 mm	PN6	140 mm	110 mm	60.3 mm	14 mm	74 mm	90 mm	38 mm	8 mm	14 mm	6 mm	3 mm	2.9 mm	M12	4 STK	1.3 kg	159 kr
BK-RK1424647	50	60.3 mm	PN64	180 mm	135 mm	60.3 mm	22 mm	82 mm	102 mm	62 mm	10 mm	26 mm	6 mm	3 mm	4.0 mm	M20	4 STK	4.6 kg	409 kr
BK-RK1422906	500	508.0 mm	PN10	670 mm	620 mm	508.0 mm	26 mm	542 mm	585 mm	75 mm	16 mm	28 mm	12 mm	4 mm	7.1 mm	M24	20 STK	38.1 kg	3439 kr
BK-RK1423409	500	508.0 mm	PN16	715 mm	650 mm	508.0 mm	33 mm	548 mm	610 mm	84 mm	16 mm	36 mm	12 mm	4 mm	8.0 mm	M30	20 STK	61 kg	4829 kr
BK-RK1423904	500	508.0 mm	PN25	730 mm	660 mm	508.0 mm	36 mm	558 mm	615 mm	125 mm	20 mm	48 mm	12 mm	4 mm	10 mm	M33	20 STK	89.6 kg	7599 kr
BK-RK1422401	500	508.0 mm	PN6	645 mm	600 mm	508.0 mm	22 mm	538 mm	570 mm	68 mm	15 mm	24 mm	12 mm	4 mm	7.1 mm	M20	20 STK	28.6 kg	2709 kr
BK-RK1422922	600	610.0 mm	PN10	780 mm	725 mm	610.0 mm	30 mm	642 mm	685 mm	82 mm	18 mm	30 mm	12 mm	5 mm	8.0 mm	M27	20 STK	44.6 kg	4479 kr
BK-RK1423425	600	610.0 mm	PN16	840 mm	770 mm	610.0 mm	36 mm	670 mm	725 mm	88 mm	18 mm	40 mm	12 mm	5 mm	8.8 mm	M33	20 STK	75.4 kg	7149 kr
BK-RK1423151	65	76.1 mm	PN16	185 mm	145 mm	76.1 mm	18 mm	92 mm	122 mm	45 mm	10 mm	18 mm	6 mm	3 mm	2.9 mm	M16	4 STK	3.1 kg	249 kr
BK-RK1425156	65	76.1 mm	PN100	220 mm	170 mm	76.1 mm	26 mm	108 mm	122 mm	76 mm	12 mm	30 mm	6 mm	3 mm	4.0 mm	M24	8 STK	7.9 kg	679 kr
BK-RK9522980	65	76.1 mm	PN16	185 mm	145 mm	76.1 mm	18 mm	92 mm	122 mm	45 mm	10 mm	18 mm	6 mm	3 mm	2.9 mm	M16	8 STK	3.1 kg	249 kr
BK-RK1424159	65	76.1 mm	PN40	185 mm	145 mm	76.1 mm	18 mm	90 mm	122 mm	52 mm	10 mm	22 mm	6 mm	3 mm	2.9 mm	M16	8 STK	3.7 kg	309 kr
BK-RK1422153	65	76.1 mm	PN6	160 mm	130 mm	76.1 mm	14 mm	88 mm	110 mm	38 mm	9 mm	14 mm	6 mm	3 mm	2.9 mm	M12	4 STK	1.7 kg	169 kr
BK-RK1424662	65	76.1 mm	PN64	205 mm	160 mm	76.1 mm	22 mm	98 mm	122 mm	68 mm	12 mm	26 mm	6 mm	3 mm	4.0 mm	M20	8 STK	5.7 kg	499 kr
BK-RK1425164	80	88.9 mm	PN100	230 mm	180 mm	88.9 mm	26 mm	120 mm	138 mm	78 mm	12 mm	32 mm	8 mm	3 mm	5.0 mm	M24	8 STK	9 kg	759 kr
BK-RK1423169	80	88.9 mm	PN16	200 mm	160 mm	88.9 mm	18 mm	105 mm	138 mm	50 mm	10 mm	20 mm	6 mm	3 mm	3.2 mm	M16	8 STK	3.7 kg	309 kr
BK-RK1424167	80	88.9 mm	PN40	200 mm	160 mm	88.9 mm	18 mm	105 mm	138 mm	58 mm	12 mm	24 mm	8 mm	3 mm	3.2 mm	M16	8 STK	4.8 kg	389 kr
BK-RK1422161	80	88.9 mm	PN6	190 mm	150 mm	88.9 mm	18 mm	102 mm	128 mm	42 mm	10 mm	16 mm	8 mm	3 mm	3.2 mm	M16	4 STK	2.7 kg	259 kr
BK-RK1424670	80	88.9 mm	PN64	215 mm	170 mm	88.9 mm	22 mm	112 mm	138 mm	72 mm	12 mm	28 mm	8 mm	3 mm	4.5 mm	M20	8 STK	6.7 kg	569 kr

Beskrivning
Mer information

Beskrivning

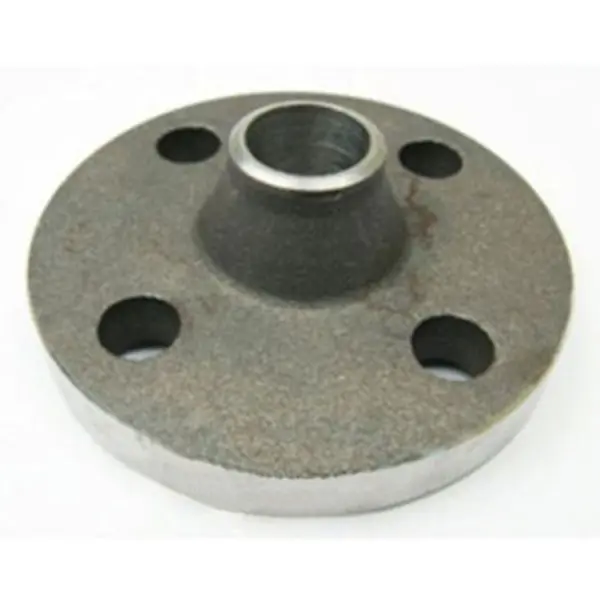

Svetsfläns med krage enligt Typ 11 EN 1092-1. Material P250 GH.
DN 10-40 PN40 = PN10-40.
DN 50-150 PN16 = PN10-16.
DN 50-150 PN40 = PN25-40.
DN 10-40 PN100 = PN64-100.

150

Dimension

168,3 mm

Tryckklass

PN16

285 mm

240 mm

168,3 mm

22 mm

184 mm

212 mm

55 mm
