Artnr: BK-RK1427145RSK: 1427145

PLAN SVETSFLÄNS 60,3 PN16 1092/01A

Name: PLAN SVETSFLÄNS 60,3 PN16 1092/01A
SKU: BK-RK1427145
Availability: InStock

Det ursprungliga priset var: 229 kr.Det nuvarande priset är: 169 kr. stk

SPARA -26% Lagervara

Lägsta pris senaste 30 dagarna: 169 kr / stk

Varianter

Artikelnr	DN	Dimension	Tryckklass	D	k	d1	d2	d3	b	Bult	Bulthål	Vikt	Pris
BK-RK1427210	100 mm	114.30 mm	PN16	220 mm	180 mm	114.3 mm	18 mm	116.0 mm	22 mm	M16	8 STK	4.5 kg	299 kr
BK-RK1426204	100 mm	114.30 mm	PN6	210 mm	170 mm	114.3 mm	18 mm	116.0 mm	18 mm	M16	4 STK	3.5 kg	229 kr
BK-RK1427236	125 mm	139.70 mm	PN16	250 mm	210 mm	139.7 mm	18 mm	141.5 mm	22 mm	M16	8 STK	6.0 kg	379 kr
BK-RK1426238	125 mm	139.70 mm	PN6	240 mm	200 mm	139.7 mm	18 mm	141.5 mm	20 mm	M16	8 STK	4.6 kg	299 kr
BK-RK1427251	150 mm	168.30 mm	PN16	285 mm	240 mm	168.3 mm	22 mm	170.5 mm	24 mm	M20	8 STK	7.3 kg	499 kr
BK-RK1426253	150 mm	168.36 mm	PN6	265 mm	225 mm	168.3 mm	18 mm	170.5 mm	20 mm	M16	8 STK	5.2 kg	339 kr
BK-RK1427046	15 mm	21.30 mm	PN16-40	95 mm	65 mm	21.3 mm	14 mm	22.0 mm	14 mm	M12	4 STK	0.6 kg	59 kr
BK-RK1426782	200 mm	219.10 mm	PN10	340 mm	295 mm	219.1 mm	22 mm	221.5 mm	24 mm	M20	8 STK	9.5 kg	639 kr
BK-RK1427285	200 mm	219.10 mm	PN16	340 mm	295 mm	219.1 mm	22 mm	221.5 mm	26 mm	M20	12 STK	9.7 kg	659 kr
BK-RK1426287	200 mm	219.10 mm	PN6	320 mm	280 mm	219.1 mm	18 mm	221.5 mm	22 mm	M16	8 STK	7.2 kg	479 kr
BK-RK1427061	20 mm	26.90 mm	PN16-40	105 mm	75 mm	26.9 mm	14 mm	27.5 mm	16 mm	M12	4 STK	0.8 kg	79 kr
BK-RK1426063	20 mm	26.30 mm	PN6	90 mm	65 mm	26.9 mm	11 mm	27.5 mm	14 mm	M10	4 STK	0.6 kg	49 kr
BK-RK1426824	250 mm	273.00 mm	PN10	395 mm	350 mm	273.0 mm	22 mm	276.5 mm	26 mm	M20	12 STK	12.1 kg	769 kr
BK-RK1427327	250 mm	273.00 mm	PN16	405 mm	355 mm	273.0 mm	26 mm	276.5 mm	29 mm	M24	12 STK	15.2 kg	969 kr
BK-RK1426329	250 mm	273.00 mm	PN6	375 mm	335 mm	273.0 mm	18 mm	276.5 mm	24 mm	M16	12 STK	9.6 kg	619 kr
BK-RK1426832	300 mm	323.90 mm	PN10	445 mm	400 mm	323.9 mm	22 mm	327.5 mm	26 mm	M20	12 STK	13.8 kg	879 kr
BK-RK1427335	300 mm	323.90 mm	PN16	460 mm	410 mm	323.9 mm	26 mm	327.5 mm	32 mm	M24	12 STK	18.5 kg	1289 kr
BK-RK1426337	300 mm	323.90 mm	PN6	440 mm	395 mm	323.9 mm	22 mm	327.5 mm	24 mm	M20	12 STK	12.6 kg	799 kr
BK-RK1427087	25 mm	33.70 mm	PN16-40	115 mm	85 mm	33.7 mm	14 mm	34.5 mm	16 mm	M12	4 STK	1.0 kg	89 kr
BK-RK1426089	25 mm	33.70 mm	PN6	100 mm	75 mm	33.7 mm	11 mm	34.5 mm	14 mm	M10	4 STK	0.7 kg	59 kr
BK-RK1426857	350 mm	355.60 mm	PN10	505 mm	460 mm	355.6 mm	22 mm	359.5 mm	30 mm	M20	16 STK	20.6 kg	1509 kr
BK-RK9103741	350 mm	355.60 mm	PN6	490 mm	445 mm	355.6 mm	22 mm	359.5 mm	26 mm	M20	12 STK	15.6 kg	1189 kr
BK-RK1426873	400 mm	406.40 mm	PN10	565 mm	515 mm	406.4 mm	26 mm	411.0 mm	32 mm	M24	16 STK	27.9 kg	1909 kr
BK-RK1427376	400 mm	406.40 mm	PN16	580 mm	525 mm	406.4 mm	30 mm	411.0 mm	38 mm	M27	16 STK	36.0 kg	2489 kr
BK-RK9103742	400 mm	406.40 mm	PN6	540 mm	495 mm	406.4 mm	22 mm	411.0 mm	28 mm	M20	16 STK	18.4 kg	1339 kr
BK-RK1427103	32 mm	42.40 mm	PN16-40	140 mm	100 mm	42.4 mm	18 mm	43.0 mm	18 mm	M16	4 STK	1.7 kg	139 kr
BK-RK1426105	32 mm	42.40 mm	PN6	120 mm	90 mm	42.4 mm	14 mm	43.5 mm	16 mm	M12	4 STK	1.2 kg	89 kr
BK-RK1427129	40 mm	48.36 mm	PN16-40	150 mm	110 mm	48.3 mm	18 mm	49.0 mm	18 mm	M16	4 STK	1.9 kg	159 kr
BK-RK1426121	40 mm	48.30 mm	PN6	130 mm	100 mm	48.3 mm	14 mm	49.5 mm	16 mm	M12	4 STK	1.4 kg	109 kr
BK-RK1426907	500 mm	508.00 mm	PN10	670 mm	620 mm	508.0 mm	26 mm	513.6 mm	38 mm	M24	20 STK	41.4 kg	2679 kr
BK-RK9103743	500 mm	508.00 mm	PN6	645 mm	600 mm	508.0 mm	22 mm	513.5 mm	30 mm	M20	20 STK	24.6 kg	1789 kr
BK-RK1427145	50 mm	60.30 mm	PN16	165 mm	125 mm	60.3 mm	18 mm	61.5 mm	20 mm	M16	4 STK	2.5 kg	169 kr
BK-RK1426147	50 mm	60.30 mm	PN6	140 mm	110 mm	60.3 mm	14 mm	61.5 mm	16 mm	M12	4 STK	1.5 kg	109 kr
BK-RK1427152	65 mm	76.10 mm	PN16	185 mm	145 mm	76.1 mm	18 mm	77.5 mm	20 mm	M16	4 STK	3.1 kg	219 kr
BK-RK1426154	65 mm	76.10 mm	PN6	160 mm	130 mm	76.1 mm	14 mm	77.5 mm	16 mm	M12	4 STK	1.9 kg	129 kr
BK-RK1427160	80 mm	88.90 mm	PN16	200 mm	160 mm	88.9 mm	18 mm	90.5 mm	20 mm	M16	8 STK	3.7 kg	249 kr
BK-RK1426162	80 mm	88.90 mm	PN6	190 mm	150 mm	88.9 mm	18 mm	90.5 mm	18 mm	M16	4 STK	3.0 kg	209 kr

Beskrivning
Mer information

Beskrivning

Plan Svetsfläns enligt Typ 01 EN 1092-1. Material S235.
DN 10-40 PN40 = PN10-40.
DN 50-150 PN16 = PN10-16.

50 mm

Dimension

60,30 mm

Tryckklass

PN16

165 mm

125 mm

60,3 mm

18 mm

61,5 mm

20 mm

Bult

M16

Bulthål

4 STK

Vikt

2,5 kg

Synonymer

plansvetsfläns

Ytterligare information

RSK	1427145

Sortiment

PLAN SVETSFLÄNS 60,3 PN16 1092/01A

PLAN SVETSFLÄNS 60,3 PN16 1092/01A

Beskrivning

Ytterligare information

50 FLÄNSPACKNING PN10-40 DIXO5000

50 FLÄNSPACKNING PN10-40 DIXO7000

50 FLÄNSPACKNING PN10-40 GRAFEX

BRICKA BRB M16X30 FZV SWEBOLT

BULT M6S 8.8 M16X65 FZV

BULT M6S-H 8.8 M16X60 FZV

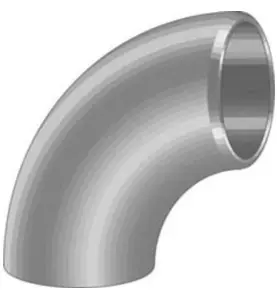

TUBBÖJ 90° 60,3X2,9 BA5 P235GH TC1
