Artnr: BK-RK1435387RSK: 1435387

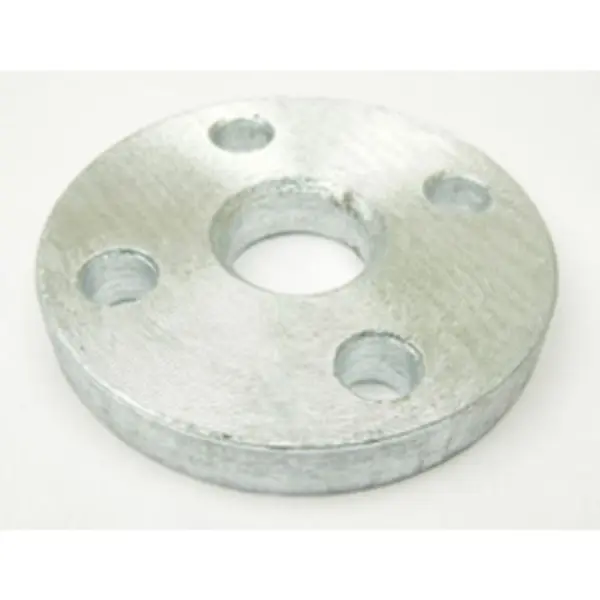

LÖSFLÄNS 100/120 GALV 02 S235 PN16

Name: LÖSFLÄNS 100/120 GALV 02 S235 PN16
SKU: BK-RK1435387
Availability: InStock

Det ursprungliga priset var: 479 kr.Det nuvarande priset är: 349 kr. stk

SPARA -27% Lagervara

Stål, galvaniserade S235JR. DN15-40=PN10-40, DN50-150=PN10-16.

Lägsta pris senaste 30 dagarna: 349 kr / stk

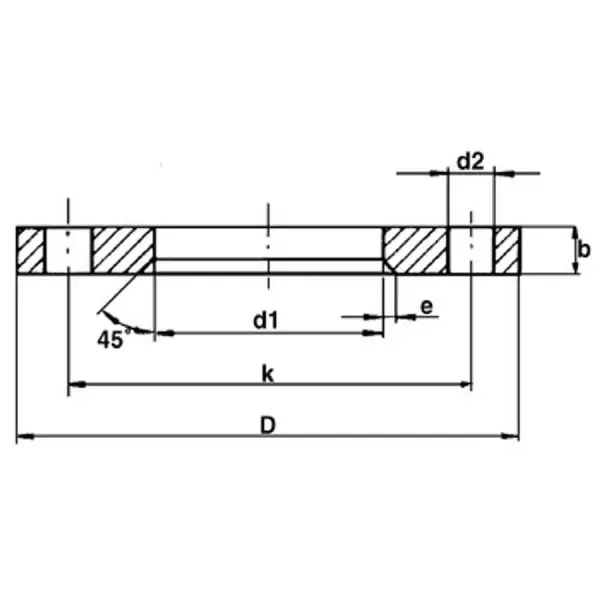

Artikelnr	DN	Dimension	Tryckklass	För rördimension	D	k	d1	d2	b	e	Gänga	Bulthål	Vikt	Pris
BK-RK1435387	100	120 mm	PN16	114.3 mm	220 mm	180 mm	120 mm	18 mm	22 mm	5 mm	M16	8 STK	3.7 kg	349 kr
BK-RK1434691	125	145 mm	PN16	139.7 mm	250 mm	210 mm	145 mm	18 mm	22 mm	5 mm	M16	8 STK	4.5 kg	399 kr
BK-RK1434612	15	24 mm	PN40	21.3 mm	95 mm	65 mm	25 mm	14 mm	14 mm	3 mm	M12	4 STK	0.7 kg	59 kr
BK-RK1434692	150	174 mm	PN16	168.3 mm	285 mm	240 mm	174 mm	22 mm	24 mm	5 mm	M20	8 STK	5.6 kg	539 kr
BK-RK1434613	20	30 mm	PN40	36.9 mm	105 mm	75 mm	31 mm	14 mm	16 mm	3 mm	M12	4 STK	0.8 kg	79 kr
BK-RK1435429	200	226 mm	PN10	219.1 mm	340 mm	295 mm	226 mm	22 mm	24 mm	5 mm	M20	8 STK	7.5 kg	759 kr
BK-RK1434614	25	38 mm	PN40	33.7 mm	115 mm	85 mm	38 mm	14 mm	16 mm	4 mm	M12	4 STK	1.1 kg	109 kr
BK-RK1434616	250	281 mm	PN10	273 mm	395 mm	350 mm	281 mm	22 mm	26 mm	5 mm	M20	12 STK	10.3 kg	919 kr
BK-RK1434617	300	333 mm	PN10	323.9 mm	445 mm	400 mm	333 mm	22 mm	26 mm	5 mm	M20	12 STK	14.0 kg	1059 kr
BK-RK1434615	32	47 mm	PN40	42.4 mm	140 mm	100 mm	47 mm	18 mm	18 mm	4 mm	M16	4 STK	1.6 kg	149 kr
BK-RK1434675	40	53 mm	PN40	48.3 mm	150 mm	110 mm	53 mm	18 mm	18 mm	4 mm	M16	4 STK	1.9 kg	169 kr
BK-RK1434677	50	65 mm	PN16	60.3 mm	165 mm	125 mm	65 mm	18 mm	20 mm	5 mm	M16	4 STK	2.2 kg	219 kr
BK-RK1434679	65	81 mm	PN16	76.1 mm	185 mm	145 mm	81 mm	18 mm	20 mm	5 mm	M16	4 STK	2.6 kg	229 kr
BK-RK281530	65	81 mm	PN16	76.1 mm	185 mm	145 mm	81 mm	18 mm	20 mm	5 mm	M16	8 STK	2.6 kg	269 kr
BK-RK1435361	80	94 mm	PN16	88.9 mm	200 mm	160 mm	94 mm	18 mm	20 mm	5 mm	M16	8 STK	3.3 kg	289 kr
