Beskrivning

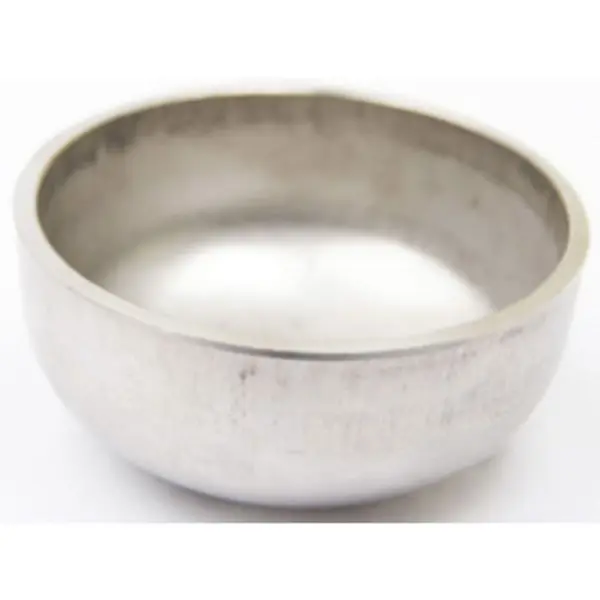

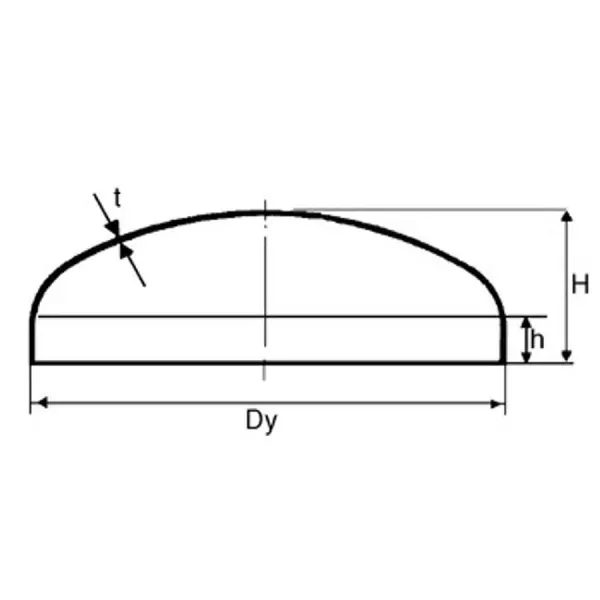

Kallformad pressad gavel i syrafast stål, ej värmebehandlad. Mått enligt SS482. K1 Plan kant upp till 2mm. K2 Svarvad kant 30gr utvändigt, gäller från 3 mm. Material 1.4404.
Dimension
323,9 mm
DN
300
Godstjocklek
3,0 mm
Typ
K2
h
20 mm
KUPAD GAVEL 323,9X3 SS482 1.4404 KANT K2 30°
Det ursprungliga priset var: 2349 kr.1839 krDet nuvarande priset är: 1839 kr. stk
SPARA -22% LagervaraLägsta pris senaste 30 dagarna: 1839 kr / stk
- Varianter
| Artikelnr | Dimension | DN | Godstjocklek | Typ | h | Pris |
|---|---|---|---|---|---|---|
| BK-RK273086 | 114.3 mm | 100 | 2.0 mm | K1 | 15 mm | 419 kr |
| BK-RK273092 | 139.7 mm | 125 | 2.0 mm | K1 | 15 mm | 619 kr |
| BK-RK273093 | 139.7 mm | 125 | 3.0 mm | K2 | 15 mm | 539 kr |
| BK-RK273094 | 168.3 mm | 150 | 3.0 mm | K2 | 20 mm | 619 kr |
| BK-RK273079 | 21.3 mm | 15 | 3.0 mm | K2 | 10 mm | 139 kr |
| BK-RK273096 | 219.1 mm | 200 | 3.0 mm | K2 | 20 mm | 949 kr |
| BK-RK273087 | 26.9 mm | 20 | 3.0 mm | K2 | 10 mm | 149 kr |
| BK-RK273121 | 273.0 mm | 250 | 3.0 mm | K2 | 20 mm | 1289 kr |
| BK-RK273097 | 323.9 mm | 300 | 3.0 mm | K2 | 20 mm | 1839 kr |
| BK-RK273080 | 33.7 mm | 25 | 3.0 mm | K2 | 10 mm | 149 kr |
| BK-RK273081 | 42.4 mm | 32 | 3.0 mm | K2 | 8 mm | 189 kr |
| BK-RK273082 | 48.3 mm | 40 | 3.0 mm | K2 | 12 mm | 179 kr |
| BK-RK273083 | 60.3 mm | 50 | 2.0 mm | K2 | 12 mm | 199 kr |
| BK-RK273084 | 76.1 mm | 65 | 2.0 mm | K1 | 10 mm | 219 kr |
| BK-RK273085 | 88.9 mm | 80 | 2.0 mm | K1 | 10 mm | 249 kr |
