1489 kr Det ursprungliga priset var: 1489 kr.1139 krDet nuvarande priset är: 1139 kr. stk
| Artikelnr | Dimension | Tryckklass | Mått | Vridmoment | Pris |
|---|---|---|---|---|---|
| BK-RK9105612 | 104.0 mm | PN16 | 30 Nm | 1329 kr | |
| BK-RK9105613 | 108.0 mm | PN16 | 30 Nm | 1359 kr | |
| BK-RK9105614 | 114.3 mm | PN16 | 50 Nm | 1769 kr | |
| BK-RK9105616 | 139.7 mm | PN16 | 50 Nm | 2259 kr | |
| BK-RK9105617 | 154.0 mm | PN16 | 60 Nm | 2429 kr | |
| BK-RK9105619 | 168.3 mm | PN16 | 60 Nm | 2449 kr | |
| BK-RK9105603 | 42.4 mm | PN16 | 15 Nm | 1049 kr | |
| BK-RK9105604 | 44.5 mm | PN16 | 15 Nm | 1049 kr | |
| BK-RK9105605 | 48.3 mm | PN16 | 15 Nm | 1049 kr | |
| BK-RK9105606 | 54.0 mm | PN16 | 15 Nm | 1139 kr | |
| BK-RK9105607 | 57.0 mm | PN16 | 20 Nm | 1139 kr | |
| BK-RK9105608 | 60.3 mm | PN16 | 20 Nm | 1169 kr | |
| BK-RK1511725 | 70.0 mm | PN16 | 30 Nm | 1229 kr | |
| BK-RK9105609 | 76.1 mm | PN16 | 30 Nm | 1229 kr | |
| BK-RK9105610 | 84.0 mm | PN16 | 30 Nm | 1269 kr | |
| BK-RK9105611 | 88.9 mm | PN16 | 30 Nm | 1259 kr | |
| BK-RK9105615 | 133 | PN16 | 131.7-134.3 mm | 50 Nm | 2049 kr |
| BK-RK9105618 | 159 | PN16 | 157.4-160.6 mm | 60 Nm | 2429 kr |
| BK-RK9105630 | 26.9 mm | 26.4-27.5 mm | 10 Nm | 969 kr | |
| BK-RK9105600 | PN16 | 26.4-27.2 mm | 10 Nm | 969 kr | |
| BK-RK9105601 | 33.7 mm | PN16 | 33.0-34.3 mm | 10 Nm | 969 kr |
| BK-RK9105602 | 38 | PN16 | 35.6-38.5 mm | 15 Nm | 1049 kr |

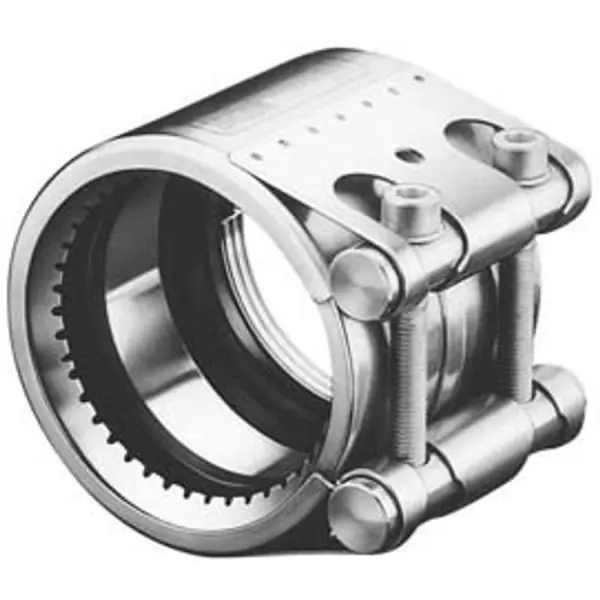

Dragsäker koppling för alla metallrör, galv, stål, cu, rfr. Hus av AISI 304, innerdelar av AISI316. Tryck max PN16 till och med 168,3. 219,1 max PN10. Tätningsmanschett : EPDM (vatten, luft, kemikalier).
stålrörskoppling, Norma connect
| RSK | 9105606 |
|---|
