Artnr: BK-RK1348029EAN: 5414785263898RSK: 1348029 Product Brand: Victaulic

F00500089000020 88/76 S50 RED KONC RILL ORANGE

Name: F00500089000020 88/76 S50 RED KONC RILL ORANGE
Brand: Victaulic
SKU: BK-RK1348029
Availability: InStock

Det ursprungliga priset var: 429 kr.Det nuvarande priset är: 319 kr. stk

SPARA -26% Beställningsvara (prel 5-10 vardagar)

Lägsta pris senaste 30 dagarna: 319 kr / stk

Varianter

Artikelnr	Dimension	Anslutning	Längd	Färg	Vikt	Höjd	Dimension anslutning	Pris
BK-RK1348027	88.9 mm	48.3 mm	64 mm	Orange	0.90 kg	32 mm	48.3 mm	419 kr
BK-RK1348029	88.9 mm	76.1 mm	64 mm	Orange	0.95 kg	32 mm	76.1 mm	319 kr
BK-RK1348005	114.3 mm	76.1 mm	76 mm	Orange	1.50 kg	38 mm	76.1 mm	389 kr
BK-RK1348006	114.3 mm	88.9 mm	76 mm	Orange	1.46 kg	38 mm	88.9 mm	389 kr
BK-RK1348007	168.3 mm	114.3 mm	102 mm	Orange	2.60 kg	51 mm	114.3 mm	689 kr
BK-RK1348011	219.1 mm	168.3 mm	127 mm	Orange	5.39 kg	64 mm	168.3 mm	1449 kr
BK-RK1348003	114.3 mm	33.7 mm	76 mm	Orange	1.36 kg	38 mm	33.7 mm	419 kr
BK-RK1348004	114.3 mm	48.3 mm	76 mm	Orange	1.15 kg	38 mm	48.3 mm	419 kr
BK-RK1348008	168.3 mm	33.7 mm	102 mm	Orange	2.26 kg	51 mm	33.7 mm	909 kr
BK-RK1348010	219.1 mm	114.3 mm	127 mm	Orange	5.15 kg	64 mm	114.3 mm	1919 kr
BK-RK1348012	273.0 mm	114.3 mm	152 mm	Orange	8.62 kg	76 mm	114.3 mm	3059 kr
BK-RK1348013	273.0 mm	168.3 mm	152 mm	Orange	9.87 kg	76 mm	168.3 mm	2829 kr
BK-RK1348014	273.0 mm	219.1 mm	152 mm	Orange	8.45 kg	76 mm	219.1 mm	2829 kr
BK-RK1348015	323.9 mm	168.3 mm	178 mm	Orange	11.34 kg	89 mm	168.3 mm	3949 kr
BK-RK1348016	323.9 mm	219.1 mm	178 mm	Orange	14.71 kg	89 mm	219.1 mm	3649 kr
BK-RK1348017	323.9 mm	273 mm	178 mm	Orange	15.80 kg	89 mm	273.0 mm	3649 kr
BK-RK1348018	48.3 mm	26.9 mm	64 mm	Orange	0.74 kg	32 mm	26.9 mm	359 kr
BK-RK1348019	48.3 mm	33.7 mm	64 mm	Orange	0.36 kg	32 mm	33.7 mm	339 kr
BK-RK1348020	48.3 mm	42.4 mm	64 mm	Orange	0.32 kg	32 mm	42.4 mm	339 kr
BK-RK1348021	60.3 mm	26.9 mm	64 mm	Orange	0.28 kg	32 mm	26.9 mm	399 kr
BK-RK1348022	60.3 mm	33.7 mm	64 mm	Orange	0.34 kg	32 mm	33.7 mm	399 kr
BK-RK1348023	60.3 mm	42.4 mm	64 mm	Orange	0.36 kg	32 mm	42.4 mm	339 kr
BK-RK1348024	60.3 mm	48.3 mm	64 mm	Orange	0.50 kg	45 mm	48.3 mm	339 kr
BK-RK1348025	88.9 mm	33.7 mm	64 mm	Orange	0.81 kg	32 mm	33.7 mm	419 kr
BK-RK1348026	88.9 mm	42.4 mm	64 mm	Orange	0.64 kg	32 mm	42.4 mm	419 kr
BK-RK1348028	88.9 mm	60.3 mm	64 mm	Orange	0.72 kg	32 mm	60.3 mm	319 kr
BK-RK1338307	168.3 mm	76.1 mm	292 mm	Röd	3 kg	102 mm	76.1 mm	939 kr
BK-RK1338316	76.1 mm	42.4 mm	64 mm	Röd	0.58 kg		42.4 mm	609 kr
BK-RK1338320	76.1 mm	48.3 mm	64 mm	Röd	0.62 kg		48.3 mm	409 kr
BK-RK1481116	114.3 mm	60.3 mm	76 mm	Röd	1.1 kg	114 mm	60.3 mm	339 kr
BK-RK1481117	114.3 mm	76.1 mm	76 mm	Röd	1.2 kg	114 mm	76.1 mm	389 kr
BK-RK1481118	114.3 mm	88.9 mm	76 mm	Röd	1.46 kg	114 mm	88.9 mm	389 kr
BK-RK1646045	139.7 mm	114.3 mm	102 mm	Röd	2.29 kg		114.3 mm	949 kr
BK-RK1481120	139.7 mm	76.1 mm	102 mm	Röd	5 kg	102 mm	76.1 mm	949 kr
BK-RK1481128	168.3 mm	114.3 mm	102 mm	Röd	2.9 kg	168 mm	114.3 mm	689 kr
BK-RK1481129	168.3 mm	139.7 mm	102 mm	Röd	2.92 kg	168 mm	139.7 mm	839 kr
BK-RK1481126	168.3 mm	60.3 mm	102 mm	Röd	3 kg	102 mm	60.3 mm	909 kr
BK-RK1481127	168.3 mm	88.9 mm	102 mm	Röd	2.88 kg	168 mm	88.9 mm	909 kr
BK-RK1481132	219.1 mm	114.3 mm	127 mm	Röd	4.8 kg	219 mm	114.3 mm	1919 kr
BK-RK1481134	219.1 mm	168.3 mm	127 mm	Röd	5.39 kg	219 mm	168.3 mm	1449 kr
BK-RK1481131	219.1 mm	88.9 mm	127 mm	Röd	4.2 kg	127 mm	88.9 mm	1919 kr
BK-RK1481108	76.1 mm	60.3 mm	64 mm	Röd	1.8 kg	76 mm	60.3 mm	309 kr
BK-RK1646043	88.9 mm	48.3 mm	64 mm	Röd	0.9 kg	89 mm	48.3 mm	419 kr
BK-RK1481111	88.9 mm	60.3 mm	64 mm	Röd	0.72 kg	89 mm	60.3 mm	319 kr
BK-RK1481112	88.9 mm	76.1 mm	64 mm	Röd	0.84 kg	89 mm	76.1 mm	319 kr

Beskrivning
Mer information

Beskrivning

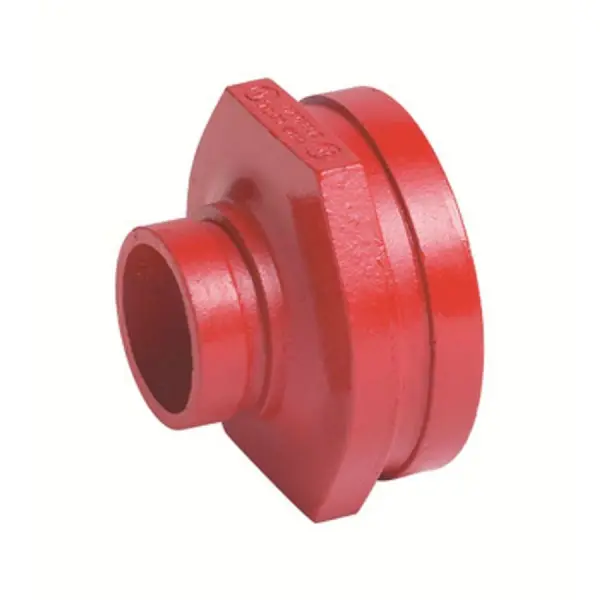

Rillad reducering, koncentrisk för sammanfogning av rillade stålrörssystem. Tryck och temperatur överensstämmer med vald koppling.
Typ S50, Victaulic produktblad 07.01.

Dimension

88,9 mm

Anslutning

76,1 mm

Längd

64 mm

Färg

Orange

Vikt

0,95 kg

Höjd

32 mm

Synonymer

rillkona, sprinkler

Dimension anslutning

76,1 mm

rillkona, sprinkler

Ytterligare information

EAN	5414785263898
RSK	1348029
Dokument	Byggvarudeklaration Byggvarudeklaration 2
