Artnr: BK-RK5745916EAN: 4062679106588RSK: 5745916Tillv artnr: 2204985 Product Brand: Wilo

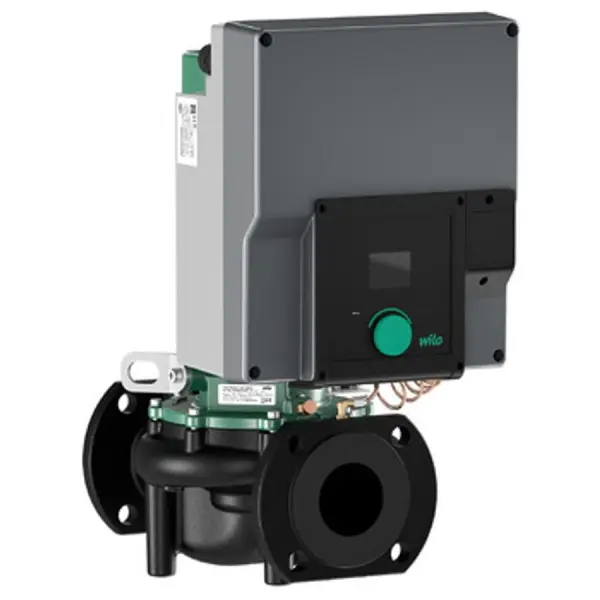

CIRKULATIONSPUMP YONOS GIGA2.0-I 50/1-10/1,1 WILO

Name: CIRKULATIONSPUMP YONOS GIGA2.0-I 50/1-10/1,1 WILO
Brand: Wilo
SKU: BK-RK5745916
Availability: InStock

Det ursprungliga priset var: 62859 kr.Det nuvarande priset är: 50969 kr. stk

SPARA -19% Beställningsvara

Torr högeffektiv cirkulationspump i enkelutförande, levereras komplett med differenstrycktransmitter. Försedd med permanentmagnetmotor och påbyggd frekvensomformare. Tillsammans med CIF-modul (tillbehör) förberedd för anslutning till byggnadsautomation via Ethernet, gränssnitt CAN, LON, BACnet eller Modbus.

Lägsta pris senaste 30 dagarna: 50969 kr / stk

Artikelnr	Modell	Anslutning	Bygglängd	Effekt	Leverantörs Art. nr.	Pris
BK-RK5745937	Yonos GIGA2.0-I 100/1-11/4.0	DN100	500 mm	4 kW	2205021	85549 kr
BK-RK5746540	Yonos GIGA2.0-I 100/1-14/5.5	DN100	500 mm	5.5 kW	2205020	88729 kr
BK-RK5746541	Yonos GIGA2.0-I 100/1-18/7.5	DN100	500 mm	7.5 kW	2205019	99379 kr
BK-RK5745935	Yonos GIGA2.0-I 100/1-8/2.2	DN100	500 mm	2.2 kW	2205023	75369 kr
BK-RK5745936	Yonos GIGA2.0-I 100/1-9/3.0	DN100	500 mm	3 kW	2205022	80859 kr
BK-RK5745902	Yonos GIGA2.0-I 32/1-12/0.55	DN32	260 mm	0.55 kW	2204971	41189 kr
BK-RK5745903	Yonos GIGA2.0-I 32/1-15/0.75	DN32	260 mm	0.75 kW	2204970	43169 kr
BK-RK5745904	Yonos GIGA2.0-I 32/1-19/1.1	DN32	260 mm	1.1 kW	2204969	46429 kr
BK-RK5745905	Yonos GIGA2.0-I 32/1-24/1.5	DN32	260 mm	1.5 kW	2204968	50489 kr
BK-RK5745906	Yonos GIGA2.0-I 32/1-32/2.2	DN32	260 mm	2.2 kW	2204973	55579 kr
BK-RK5745908	Yonos GIGA2.0-I 40/1-10/0.75	DN40	320 mm	0.75 kW	2204976	46349 kr
BK-RK5745909	Yonos GIGA2.0-I 40/1-13/1.1	DN40	320 mm	1.1 kW	2204975	50329 kr
BK-RK5745910	Yonos GIGA2.0-I 40/1-16/1.5	DN40	320 mm	1.5 kW	2204974	54699 kr
BK-RK5745911	Yonos GIGA2.0-I 40/1-21/2.2	DN40	320 mm	2.2 kW	2204983	62099 kr
BK-RK5745912	Yonos GIGA2.0-I 40/1-26/3.0	DN40	320 mm	3 kW	2204982	67419 kr
BK-RK5745913	Yonos GIGA2.0-I 40/1-31/4.0	DN40	320 mm	4 kW	2204981	75129 kr
BK-RK5745907	Yonos GIGA2.0-I 40/1-8/0.55	DN40	320 mm	0.55 kW	2204977	42619 kr
BK-RK5745916	Yonos GIGA2.0-I 50/1-10/1.1	DN50	340 mm	1.1 kW	2204985	50969 kr
BK-RK5745917	Yonos GIGA2.0-I 50/1-13/1.5	DN50	340 mm	1.5 kW	2204984	56529 kr
BK-RK5745918	Yonos GIGA2.0-I 50/1-17/2.2	DN50	340 mm	2.2 kW	2204993	64959 kr
BK-RK5745919	Yonos GIGA2.0-I 50/1-20/3.0	DN50	340 mm	3 kW	2204992	67499 kr
BK-RK5745920	Yonos GIGA2.0-I 50/1-25/4.0	DN50	340 mm	4 kW	2204991	82769 kr
BK-RK5745914	Yonos GIGA2.0-I 50/1-6/0.55	DN50	340 mm	0.55 kW	2204987	43649 kr
BK-RK5745915	Yonos GIGA2.0-I 50/1-8/0.75	DN50	340 mm	0.75 kW	2204986	47149 kr
BK-RK5745924	Yonos GIGA2.0-I 65/1-10/1.5	DN65	340 mm	1.5 kW	2204994	52789 kr
BK-RK5745925	Yonos GIGA2.0-I 65/1-14/2.2	DN65	340 mm	2.2 kW	2205003	59229 kr
BK-RK5745926	Yonos GIGA2.0-I 65/1-16/3.0	DN65	340 mm	3 kW	2205002	68529 kr
BK-RK5745927	Yonos GIGA2.0-I 65/1-20/4.0	DN65	340 mm	4 kW	2205001	72669 kr
BK-RK5746536	Yonos GIGA2.0-I 65/1-24/5.5	DN65	340 mm	5.5 kW	2205000	78149 kr
BK-RK5746537	Yonos GIGA2.0-I 65/1-31/7.5	DN65	340 mm	7.5 kW	2204999	86979 kr
BK-RK5745921	Yonos GIGA2.0-I 65/1-5/0.55	DN65	340 mm	0.55 kW	2204997	40869 kr
BK-RK5745922	Yonos GIGA2.0-I 65/1-6/0.75	DN65	340 mm	0.75 kW	2204996	43169 kr
BK-RK5745923	Yonos GIGA2.0-I 65/1-8/1.1	DN65	340 mm	1.1 kW	2204995	47939 kr
BK-RK5745932	Yonos GIGA2.0-I 80/1-10/2.2	DN80	360 mm	2.2 kW	2205013	60269 kr
BK-RK5745933	Yonos GIGA2.0-I 80/1-12/3.0	DN80	360 mm	3 kW	2205012	68529 kr
BK-RK5745934	Yonos GIGA2.0-I 80/1-15/4.0	DN80	360 mm	4 kW	2205011	71789 kr
BK-RK5746538	Yonos GIGA2.0-I 80/1-19/5.5	DN80	360 mm	5.5 kW	2205010	79349 kr
BK-RK5746539	Yonos GIGA2.0-I 80/1-23/7.5	DN80	360 mm	7.5 kW	2205009	87849 kr
BK-RK5745928	Yonos GIGA2.0-I 80/1-4/0.55	DN80	360 mm	0.55 kW	2205007	39279 kr
BK-RK5745929	Yonos GIGA2.0-I 80/1-5/0.75	DN80	360 mm	0.75 kW	2205006	43649 kr
BK-RK5745930	Yonos GIGA2.0-I 80/1-6/1.1	DN80	360 mm	1.1 kW	2205005	48419 kr
BK-RK5745931	Yonos GIGA2.0-I 80/1-8/1.5	DN80	360 mm	1.5 kW	2205004	53829 kr

Beskrivning
Mer information

Beskrivning

Modell

Yonos GIGA2.0-I 50/1-10/1,1

Anslutning

DN50

Bygglängd

340 mm

Effekt

1,1 kW

Tryck

PN16 bar

Fas

Spänning

400 V

Fläns

Min temperatur

-20 °C

Max temperatur

120 °C

Tvillingpump

Nej

Pumptyp

Torr

Reach

Ytterligare information

EAN	4062679106588
RSK	5745916
Tillverkarens artnr	2204985
Dokument	Certifikat ERP – energimärkningsetikett Drift- och skötselanvisning Övrigt Monteringsanvisning Konfigurationsanvisning
