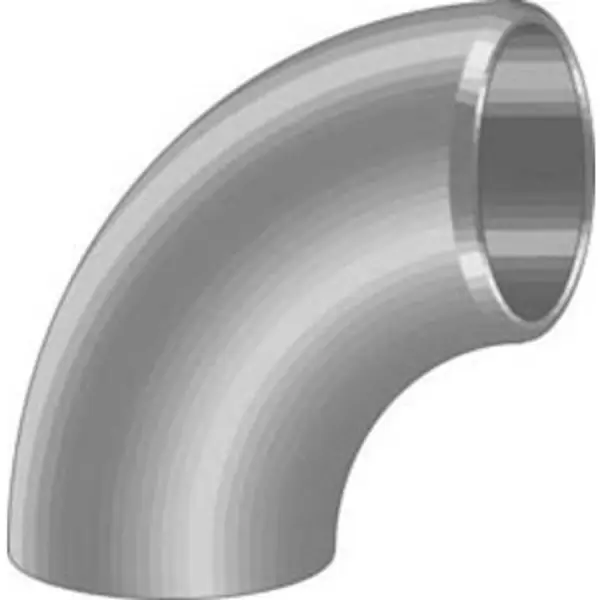

Beskrivning
R=1,5xD. Typ 3D ISO, EN1.4432/316L (SS 2353) EN10253-3 alt. 10253-4. TYP A.
Dimension
60,3 mm
DN
50
Godstjocklek
2,0 mm
Radie
76,0
Vikt
0,36 kg
Kvalité
-4
EPD Miljövarudeklaration
BÖJ 60,3X2,0 3D 1.4432 -4A
Det ursprungliga priset var: 169 kr.129 krDet nuvarande priset är: 129 kr. stk
SPARA -24% LagervaraLägsta pris senaste 30 dagarna: 129 kr / stk
- Varianter
| Produktnamn | RSK | Dimension | DN | Godstjocklek | Radie | Vikt | Pris |
|---|---|---|---|---|---|---|---|
| BÖJ 114,3X2,0 3D 1.4432 -4A | 9148786 | 114.3 mm | 100 | 2.0 mm | 152.0 | 1.35 kg | 409 kr |
| BÖJ 114,3X3,0 3D 1.4432 -4A | 9148788 | 114.3 mm | 100 | 3.0 mm | 152.0 | 2.00 kg | 539 kr |
| BÖJ 139,7X2,0 3D 1.4432 -4A | 9148789 | 139.7 mm | 125 | 2.0 mm | 190.0 | 2.07 kg | 709 kr |
| BÖJ 139,7X3,0 3D 1.4432 -4A | 9148791 | 139.7 mm | 125 | 3.0 mm | 190.0 | 3.10 kg | 929 kr |
| BÖJ 168,3X2,0 3D 1.4432 -4A | 9148792 | 168.3 mm | 150 | 2.0 mm | 229.0 | 3.00 kg | 929 kr |
| BÖJ 168,3X3,0 3D 1.4432 -4A | 9148794 | 168.3 mm | 150 | 3.0 mm | 229.0 | 4.50 kg | 1249 kr |
| BÖJ 21,3X2,0 3D 1.4432 -4A | 9148752 | 21.3 mm | 15 | 2.0 mm | 28.0 | 0.02 kg | 59 kr |
| BÖJ 219,1X2,0 3D 1.4432 -4A | 9148795 | 219.1 mm | 200 | 2.0 mm | 305.0 | 5.23 kg | 1579 kr |
| BÖJ 219,1X3,0 3D 1.4432 -4A | 9148797 | 219.1 mm | 200 | 3.0 mm | 305.0 | 7.80 kg | 2079 kr |
| BÖJ 26,9X2,0 3D 1.4432 -4A | 9148756 | 26.9 mm | 20 | 2.0 mm | 28.0 | 0.06 kg | 59 kr |
| BÖJ 273,0X3,0 3S 1.4432 -4A | 9148800 | 273.0 mm | 250 | 3.0 mm | 381.0 | 12.00 kg | 3099 kr |
| BÖJ 323,9X3,0 3D 1.4432 -4A | 9148801 | 323.3 mm | 300 | 3.0 mm | 457.0 | 17.40 kg | 4349 kr |
| BÖJ 33,7X2,0 3D 1.4432 -4A | 9148760 | 33.7 mm | 25 | 2.0 mm | 38.0 | 0.10 kg | 69 kr |
| BÖJ 42,4X2,0 3D 1.4432 -4A | 9148765 | 42.4 mm | 32 | 2.0 mm | 48.0 | 0.15 kg | 79 kr |
| BÖJ 48,3X2,0 3D 1.4432 -4A | 9148770 | 48.3 mm | 40 | 2.0 mm | 57.0 | 0.21 kg | 89 kr |
| BÖJ 60,3X2,0 3D 1.4432 -4A | 9148775 | 60.3 mm | 50 | 2.0 mm | 76.0 | 0.36 kg | 129 kr |
| BÖJ 76,1X2,0 3D 1.4432 -4A | 9148779 | 76.1 mm | 65 | 2.0 mm | 95.0 | 0.55 kg | 199 kr |
| BÖJ 88,9X2,0 3D 1.4432 -4A | 9148782 | 88.9 mm | 80 | 2.0 mm | 114.0 | 0.79 kg | 249 kr |
Ytterligare information
| RSK | 9148775 |
|---|---|
| Dokument | EPD – Miljövarudeklaration ISO14025/EN15804 |
