Beskrivning
EN 1.4307. DN 200 : D+100=3S (SS 2352) EN 10253-3 alt. 10253-4. TYP A.
Dimension
154,0 mm
DN
150
Godstjocklek
2,0 mm
Radie
250,0
Vikt
3,10 kg
EPD Miljövarudeklaration

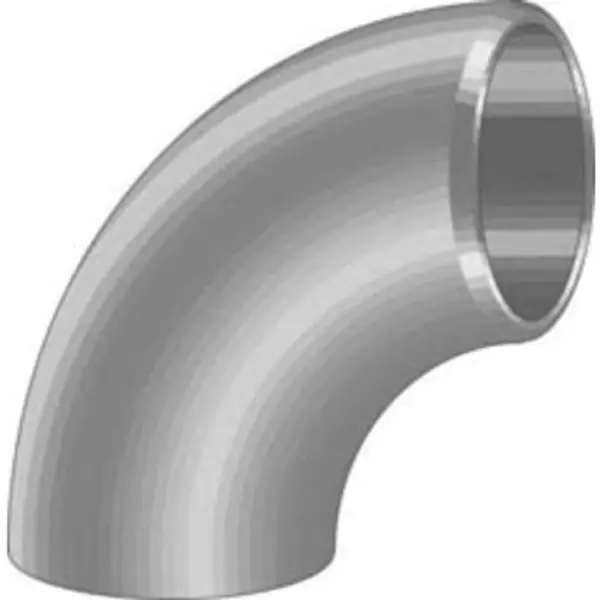

BÖJ 154,0X2,0 D+100 1.4307 -4A
Det ursprungliga priset var: 1199 kr.919 krDet nuvarande priset är: 919 kr. stk
SPARA -23% LagervaraLägsta pris senaste 30 dagarna: 919 kr / stk
- Varianter
| Artikelnr | Dimension | DN | Godstjocklek | Radie | Vikt | Pris |
|---|---|---|---|---|---|---|
| BK-RK9155784 | 104.0 mm | 100 | 2.0 mm | 200.0 | 1.60 kg | 689 kr |
| BK-RK9155788 | 154.0 mm | 150 | 2.0 mm | 250.0 | 3.10 kg | 919 kr |
| BK-RK9155794 | 254.0 mm | 250 | 2.0 mm | 350.0 | 7.00 kg | 2389 kr |
| BK-RK9155796 | 256.0 mm | 250 | 3.0 mm | 350.0 | 10.45 kg | 3469 kr |
| BK-RK9155765 | 306.0 mm | 300 | 3.0 mm | 400.0 | 14.40 kg | 4489 kr |
| BK-RK9155768 | 356.0 mm | 350 | 3.0 mm | 450.0 | 19.00 kg | 5449 kr |
| BK-RK9155770 | 406.0 mm | 400 | 3.0 mm | 500.0 | 24.00 kg | 7419 kr |
| BK-RK9155771 | 506.0 mm | 500 | 3.0 mm | 600.0 | 35.61 kg | 12489 kr |
| BK-RK9155772 | 508.0 mm | 500 | 4.0 mm | 600.0 | 57.57 kg | 16539 kr |
| BK-RK9155774 | 608.0 mm | 600 | 4.0 mm | 700.0 | 66.52 kg | 22749 kr |
Ytterligare information
| RSK | 9155788 |
|---|---|
| Dokument | EPD – Miljövarudeklaration ISO14025/EN15804 |
