Beskrivning
EN1092-1. Typ 05/A. 1.4404/316L
DN
100
Tryckklass
PN40

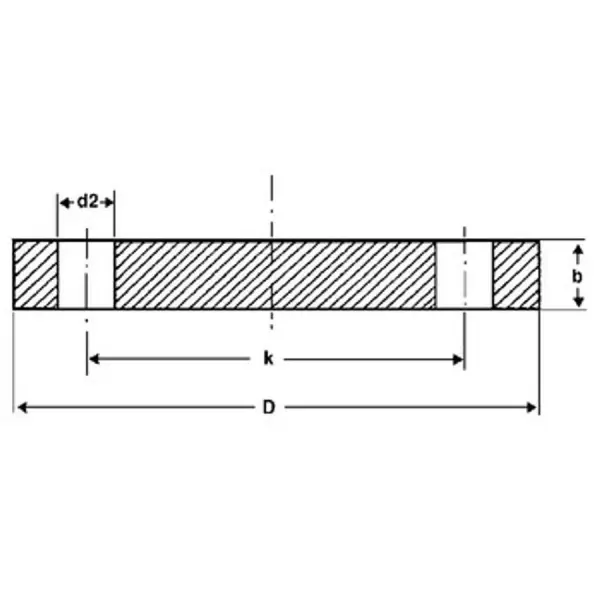

D
235 mm
k
190 mm
b
24 mm
d2
22 mm
Gänga
M20
PN
40
Bulthål
8 STK
Vikt
7,5 kg

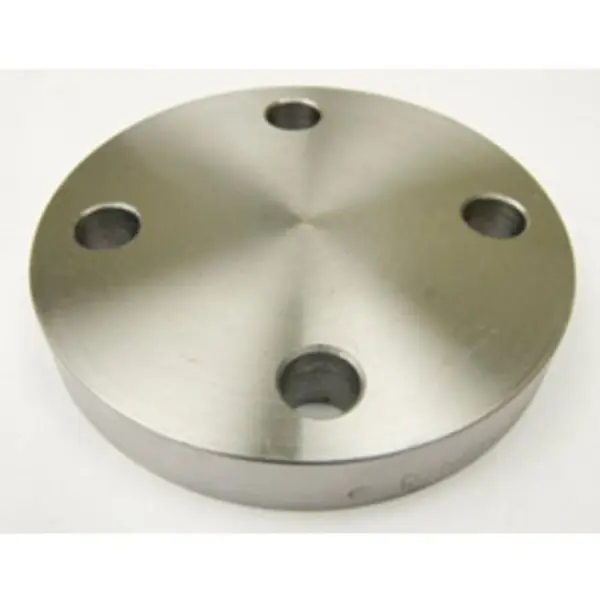

syrafast blindfläns
BLINDFLÄNS 100 EN1092-1 05A PN40 1.4404
Det ursprungliga priset var: 2029 kr.1589 krDet nuvarande priset är: 1589 kr. stk
SPARA -22% LagervaraLägsta pris senaste 30 dagarna: 1589 kr / stk
- Varianter
| Artikelnr | DN | Tryckklass | D | k | b | d2 | Gänga | PN | Bulthål | Vikt | Pris |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BK-RK9103476 | 100 | PN16 | 220 mm | 180 mm | 20 mm | 18 mm | M16 | 16 | 8 STK | 5.8 kg | 1249 kr |
| BK-RK9103395 | 100 | PN40 | 235 mm | 190 mm | 24 mm | 22 mm | M20 | 40 | 8 STK | 7.5 kg | 1589 kr |
| BK-RK9103478 | 125 | PN16 | 250 mm | 210 mm | 22 mm | 18 mm | M16 | 16 | 8 STK | 8.6 kg | 1699 kr |
| BK-RK9103396 | 125 | PN40 | 270 mm | 220 mm | 26 mm | 26 mm | M24 | 40 | 8 STK | 10.8 kg | 3009 kr |
| BK-RK9103387 | 15 | PN40 | 95 mm | 65 mm | 16 mm | 14 mm | M12 | 40 | 4 STK | 0.8 kg | 199 kr |
| BK-RK9103482 | 150 | PN16 | 285 mm | 240 mm | 22 mm | 22 mm | M20 | 16 | 8 STK | 10.6 kg | 2209 kr |
| BK-RK9103397 | 150 | PN40 | 300 mm | 150 mm | 250 mm | 26 mm | M24 | 40 | 8 STK | 14.5 kg | 2969 kr |
| BK-RK9103388 | 20 | PN40 | 105 mm | 75 mm | 18 mm | 14 mm | M12 | 40 | 4 STK | 1.2 kg | 279 kr |
| BK-RK278040 | 200 | PN10 | 340 mm | 295 mm | 24 mm | 22 mm | M20 | 10 | 8 STK | 16.5 kg | 3329 kr |
| BK-RK9103480 | 200 | PN16 | 340 mm | 295 mm | 24 mm | 22 mm | M20 | 16 | 12 STK | 16.5 kg | 3299 kr |
| BK-RK9103389 | 25 | PN40 | 115 mm | 88 mm | 18 mm | 14 mm | M12 | 40 | 4 STK | 1.4 kg | 329 kr |
| BK-RK9103390 | 32 | PN40 | 140 mm | 100 mm | 18 mm | 18 mm | M16 | 40 | 4 STK | 2.0 kg | 489 kr |
| BK-RK9103391 | 40 | PN40 | 150 mm | 110 mm | 18 mm | 18 mm | M16 | 40 | 4 STK | 2.3 kg | 559 kr |
| BK-RK9103470 | 50 | PN16 | 165 mm | 125 mm | 18 mm | 18 mm | M16 | 16 | 4 STK | 2.9 kg | 679 kr |
| BK-RK9103392 | 50 | PN40 | 165 mm | 125 mm | 20 mm | 18 mm | M16 | 40 | 4 STK | 3.2 kg | 719 kr |
| BK-RK9103472 | 65 | PN16 | 185 mm | 145 mm | 18 mm | 18 mm | M16 | 16 | 4 STK | 3.7 kg | 779 kr |
| BK-RK9156230 | 65 | PN16 | 185 mm | 145 mm | 18 mm | 18 mm | M16 | 16 | 8 STK | 3.7 kg | 779 kr |
| BK-RK9103393 | 65 | PN40 | 185 mm | 145 mm | 22 mm | 18 mm | M16 | 40 | 8 STK | 4.3 kg | 1279 kr |
| BK-RK9103474 | 80 | PN16 | 200 mm | 160 mm | 20 mm | 18 mm | M16 | 16 | 8 STK | 4.8 kg | 1019 kr |
| BK-RK9103394 | 80 | PN40 | 200 mm | 160 mm | 24 mm | 18 mm | M16 | 40 | 8 STK | 5.9 kg | 1199 kr |
